Purification Techniques | My Tag, My Choice — Affinity Tag Selection: Who Is Your Best Partner?

Table of Content [Hide]

Affinity tag technology is a cornerstone of protein research. By "tagging" the target protein, it becomes identifiable and capturable. When combined with affinity chromatography, this approach transforms otherwise "invisible" proteins into detectable, retrievable, and observable signals, enabling the visualization, quantification, and comparison of relevant proteins in complex systems such as signaling pathways and drug development.


Figure 1: BioLink’s full series of tag-specific affinity purification products, covering multiple tags and compatible with both prokaryotic and eukaryotic expression systems.

Functional Classification of Common Protein Tags

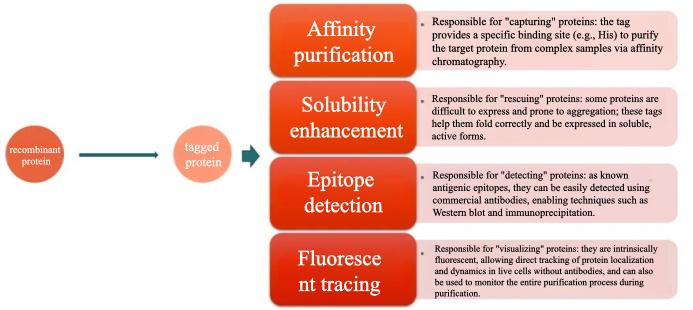

Figure 2: Types of protein tags.

Common Protein Tags and Their Characteristics

Table 1

Tag Name	Tag Type	Molecular Weight	Mechanism	Main Advantages	Main Disadvantages	Core Applications
His-tag(6×His)	Affinity purification	~0.8 kDa	Imidazole rings of six histidines chelate specifically with Ni²⁺/Co²⁺ metal ions	Very small, minimally disruptive to protein structure; compatible with denaturing/native conditions; low cost, highly versatile across hosts; low immunogenicity	Moderate specificity, prone to non-specific bands; high imidazole interferes with downstream MS/cell-based assays	Routine protein purification; inclusion body purification; multi-host (prokaryotic/eukaryotic) expression
Strep-tag II/Twin-Strep	Affinity purification	~1.06 kDa/~2.89 kDa	Strep-tag II / Twin-Strep binds specifically to engineered streptavidin	High specificity, few contaminants; mild elution conditions suitable for active proteins; can be combined with His-tag	Relatively expensive resins; single-copy Strep-tag II has moderate binding; biotin residues may interfere with downstream biotin-labelling assays	Active protein purification; tandem-tag purification; high-specificity purification
Flag-tag	Affinity purification + epitope detection	~1.1 kDa	Flag peptide epitope binds specifically to anti-Flag monoclonal antibody	High specificity, extremely low background; competitive elution preserves protein activity; short tag minimally affects structure/function	Expensive resins; acidic elution may damage some pH-sensitive proteins	Small-scale protein purification; Co-IP; Western blot
Myc-tag	Epitope detection	~1.2 kDa	Myc peptide epitope binds specifically to anti-Myc monoclonal antibody	Well-commercialized antibodies; high sensitivity in WB; does not interfere with target protein folding	Low resin capacity; high cost; not suitable for large-scale preparative purification	Western blot; immunofluorescence (IF); small-scale immunoprecipitation

Table 2

Tag Name	Tag Type	Molecular Weight	Mechanism	Main Advantages	Main Disadvantages	Core Applications
HA-tag	Epitope detection	~1.1 kDa	HA peptide epitope binds specifically to anti-HA monoclonal antibody	Minimal impact on exogenous protein spatial structure; high antibody specificity and availability	Weak affinity purification capability; not suitable for large-scale preparative purification	WB, IF, Co-IP
GST-tag	Affinity purification + solubility enhancement	~26 kDa	GST protein binds specifically to glutathione ligand	Strong solubilizing effect; mild competitive elution; high affinity and low background, ideal for pull-down experiments	Large tag, may interfere with protein function	Purification of insoluble proteins in prokaryotic systems; pull-down assays
MBP-tag	Affinity purification + solubility enhancement	~40 kDa	MBP protein binds specifically to amylose/maltose resin	Strongest solubility enhancement; effectively protects protein structure and reduces degradation	Very large tag, strongly interferes with protein function; protein often unstable after enzymatic removal	Purification of aggregation-prone or poorly folded eukaryotic/membrane proteins

Table 3

Tag Name	Tag Type	Molecular Weight	Mechanism	Main Advantages	Main Disadvantages	Core Applications
SUMO-tag	Solubility enhancement	~11 kDa	SUMO sequence binds to its specific affinity matrix; cleavable by SUMO protease for scar-free removal	Enhances solubility; protects against proteolysis; enables scar-free cleavage via SUMO protease	Requires pairing with another tag for affinity purification	Membrane proteins; multi-subunit proteins; structural studies
GFP/EGFP/YFP/ RFP-tag	Fluorescent tracing	~27 kDa	Spontaneous fluorescence upon excitation, without external antibodies/substrates	Stable, bright fluorescence; real-time live-cell imaging; suitable for FACS	May affect target protein folding; fluorescence sensitive to fixation/strong acid	Live-cell subcellular localization; confocal imaging; flow cytometry; cell tracing; combined with affinity tags to monitor protein status and purification process
mCherry/Orange-tag	Fluorescent tracing	~28 kDa	Spontaneous red fluorescence; longer excitation/emission wavelengths	Better tissue penetration for red light; allows dual-labelling with GFP; high photostability; avoids cellular green autofluorescence	Slower folding; reduced expression levels for some fusion proteins	Multi-protein co-localization; live small-animal imaging; dual-fluorescence experiments; combined with affinity tags to monitor protein status and purification process

Guidelines for Choosing a Protein Tag

Selection of a protein tag should be based on core experimental needs and trade-offs:

1. Clarify the experimental objective first:

For large-scale protein purification, His-tag is the first choice due to its small size, low cost, and wide applicability. For high-purity protein preparation, consider Strep-tag II/Twin-Strep, Flag-tag, or tandem tags (e.g., His-Flag, His-Strep) to balance efficiency and specificity. For protein-interaction studies such as Western blot, epitope tags are preferred. To preserve protein activity, prioritize tags that allow mild elution, such as Strep-tag II/Twin-Strep and Flag-tag.

2. Consider the characteristics of the target protein:

For small proteins, choose a small tag to avoid masking function. For poorly soluble proteins, solubility-enhancing tags like MBP or dual tags such as His-SUMO are recommended.

3. Match the protein expression system:

His-tag works across multiple systems. In prokaryotic systems prone to inclusion bodies, solubility-enhancing tags (GST, MBP, SUMO) help correct folding. In eukaryotic systems, which have robust protein processing and folding machinery, smaller tags like Flag and HA are preferred to minimise structural/functional interference.

4. Balance overall cost and downstream operations:

For large-scale work, His-tag is economical due to lower resin and reagent costs. For small-scale experiments, Strep/Flag-tags offer higher specificity, reducing subsequent polishing steps and costs. Consider whether protease cleavage is needed: large tags usually require incorporation of a cleavage site in the vector, whereas small tags often do not and can be used directly in downstream applications.

There is no simple “good” or “bad” tag; the choice depends on downstream requirements, protein properties, expression system, and cleavage strategy — helping you avoid unnecessary detours.

BioLink’s full series of tag-specific affinity purification products covers multiple tags and is compatible with both prokaryotic and eukaryotic expression systems, offering a one-stop solution to drive your protein research to success efficiently!
