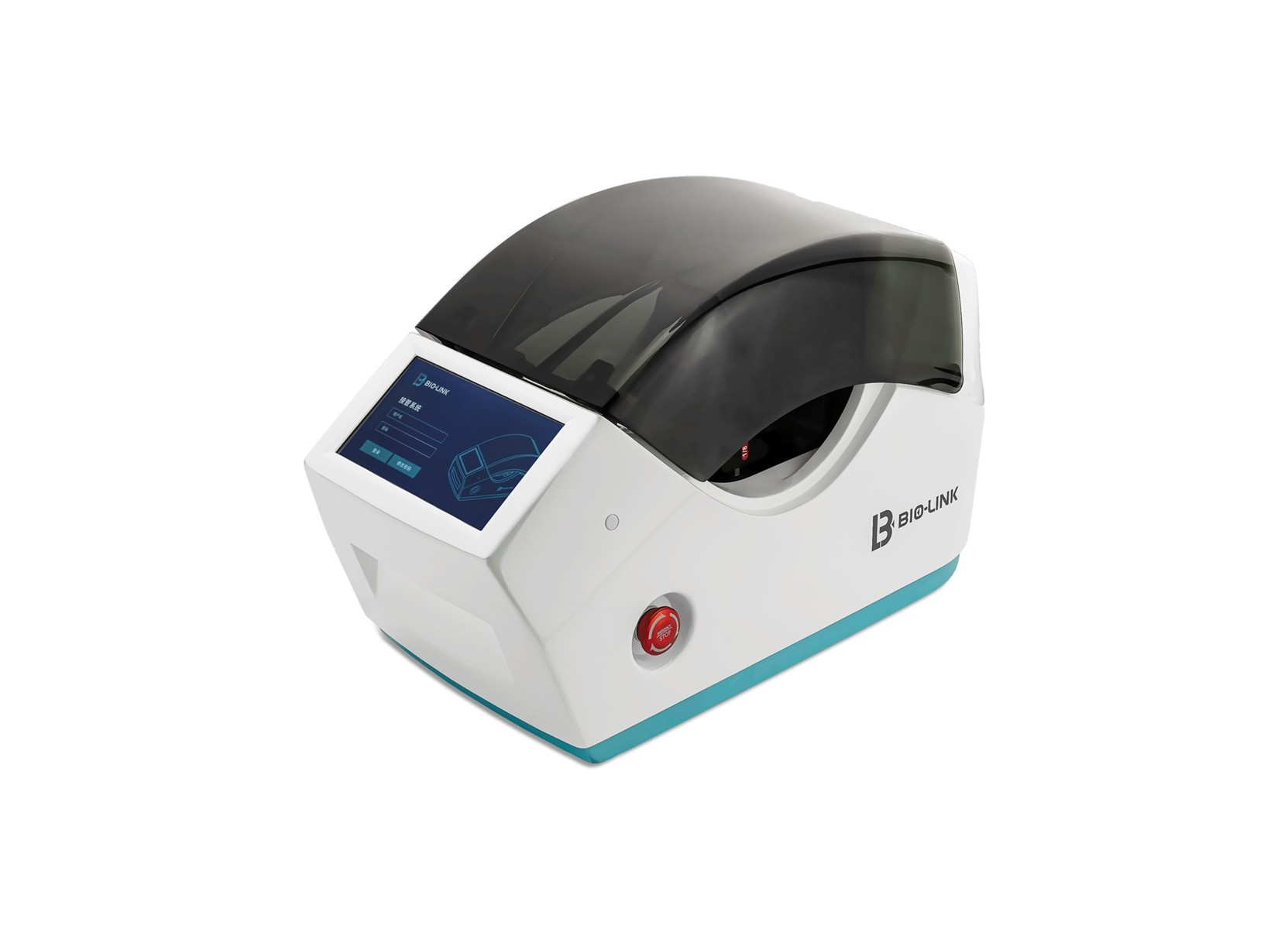

BioHub^® Welder

Name: BioHub ® Welder
Brand: Bio-Link

BioHub^® Welder provides a flexible, fast and cost-effective solution for aseptic connection of fluids. With this solution, the aseptic connection of single-use process bags, single-use tubing assemblies and units can be achieved in a non-sterile environment during the biopharmaceutical manufacturing process, without pre-as- sembling.

Inquiry Download

Application Operating Principle Features Specifications Ordering Information Contact us

_{Please be advised that this product is only available for sale and after-sales support in certain regions. For further details, kindly consult with your local sales representative. Thank you for your understanding.}

Application of BioHub^® Welder

Aseptic connection of TPE tubing for mixing/storage bags
Aseptic connection of TPE tubing for feeding bags
Aseptic connection of TPE tubing in other process steps

Operating Principle of BioHub^® Welder

Properly place the tube holders, disposable blade, and the TPE tubing to be connected, operate the touch screen to initiate the welding process: heat the blade to 400 °C (for pyrogen removal), then cool to the welding tem- perature. After the tubing is cut, the tube holders automatically rotate and the pipe sections are each reconnect- ed to form two closed tubings.

Features of BioHub^® Welder

Automatic identification:

Automatic tubing identification for automatic welding process

Easy operation:

Step-by-step prompts are provided on the touch screen for accurate tube welding, facilitating the tracking and monitoring of each step

Wide coverage:

Compatible with OD 1/4" – 1" tubings, applicable for tube welding with/without fluid

High flexibility:

C-Flex^® 374 and AdvantaFlex^® tubings are available as standard configurations, and tubings of other brands are also supported

Short-time and high-efficient:

Automatic tube welding can be completed rapidly and reliably in less than 180 s, reducing the production time

Two-way welding:

The unique patented rotation technology allows the production of two independent tubings only by a single connection, increasing the practicability of the welder

Highly inclusive:

The tubing can be operated at a length as short as 400 mm, facilitating the operation

Data reliability:

The welder is assured of data integrity, with complete 3-level permissions, audit trail, data export, and other related functions

Stability and security:

Welding parameters and tubings are subject to rigorous testing and validation for continuous, stable, and robust aseptic connections

Data reliability:

The welder is assured of data integrity, with complete 3-level permissions, audit trail, data export, and other related functions

Stability and security:

Welding parameters and tubings are subject to rigorous testing and validation for continuous, stable, and robust aseptic connections

Specifications of BioHub^® Welder

Power supply	220 V/50 Hz
Power requirements	160 W
Dimension	590 mm × 251 mm × 297 mm
Net weight	19.4 kg
Welding time	≤ 3 min
Heat-sealing conditions	5 –40 °C, 50% –80% RH
IP grade	IP20

Ordering Information of BioHub^® Welder

Name	Product Code
BioHub^® Welder	BLKWELDER01
1/8 × 1/4 pipe shoe (2 pcs/BX)	BLKTBHL01
1/4 × 3/8 pipe shoe (2 pcs/BX)	BLKTBHL02
1/4 × 7/16 pipe shoe (2 pcs/BX)	BLKTBHL03
3/8 × 5/8 pipe shoe (2 pcs/BX)	BLKTBHL04
5/8 × 7/8 pipe shoe (2 pcs/BX)	BLKTBHL05
1/2 × 3/4 pipe shoe (2 pcs/BX)	BLKTBHL06
3/4 × 1 pipe shoe (2 pcs/BX)	BLKTBHL07
IOQ validation service	IOQ-WELD-01
