Lactate Metabolism in Cell Culture

Lactate metabolism is the core link in the development and optimization of cell culture processes, which directly affects cell growth, survival rate, and the yield and quality of target proteins (such as therapeutic antibodies).

What Is Lactic Acid? How Did It Come About?

Lactate is the end product of the Glycolysis pathway. In cell culture, its production process is roughly as follows:

1. Glucose Uptake: Cells take glucose from the culture medium as the primary energy and carbon source.

2. Glycolysis: Glucose is broken down into Pyruvate in the cytoplasm and a small amount of ATP (energy currency) is produced.

3. Lactate Production: When cells are in a high-speed proliferation stage, oxygen supply is relatively insufficient, or mitochondrial function is busy, a large amount of pyruvate does not enter mitochondria for efficient aerobic metabolism (TCA cycle), but is reduced to lactate under the action of lactate dehydrogenase (LDH). This process is called "aerobic glycolysis" or "Warburg effect".

It can be simply summarized as:

Glucose → Pyruvate → Lactate

Negative Effects of Lactate Accumulation

In the early and middle stages of cell culture (exponential growth phase), lactate can accumulate rapidly, which in turn has multiple adverse effects on the culture process:

1. Reduce the pH of the Medium: Lactic acid is an organic acid, and its accumulation can drop the pH of the medium. While the bioreactor has an automatic pH control system (neutralization by adding a base such as NaHCO₃), this increases the osmotic pressure and salt concentration, putting additional stress on the cells.

2. Inhibition of Cell Growth and Viability: High concentrations of lactic acid (usually > 20-40 mM, depending on cell line and process) are toxic to cells and can significantly inhibit cell proliferation and reduce cell viability, resulting in a decrease in final cell density.

3. Impact on Product Quality: The metabolic environment  altered by lactic acid accumulation may affect key quality attributes such as protein Glycosylation, leading to an increase in product heterogeneity.

4. Increased Metabolic Burden: Cells need to consume energy to deal with the toxicity of lactic acid, thus reducing the energy used for growth and protein synthesis.

The Transition of Lactate Metabolism: from "Production" to "Consumption"

One of the hallmarks of an efficient cell culture process is the realization of Lactate Metabolic Shift in the middle and late stages of culture, that is, cells change from net lactate producers to net lactate consumers.

The Above Phenomena Usually Occur In:

1. Cell Growth Slows Down or Enters a Stationary Phase: Proliferation slows down and energy requirements decrease.

2. Glucose Concentration Decreases: The carbon source decreases and cells begin to look for alternative energy sources.

3. Lactate Concentration Reaches a Certain Level: High lactate itself may act as a signal or substrate.

How Do Cells Consume Lactic Acid?

Cells Can Reuse Lactic Acid By:

• Enter the TCA Cycle: Lactic acid is oxidized back to pyruvate, then enters the mitochondria and participates in the tricarboxylic acid cycle (TCA cycle), producing a lot of energy (ATP).

• Gluconeogenesis: In some cases, lactic acid can be used as a precursor substance for the synthesis of glucose or other amino acids.

Benefits of Achieving Lactate Metabolic Switch:

• More Stable pH: Lactic acid is consumed, reducing the pressure on pH control.

• Longer Cell Viability: Toxicity is reduced, and cells enter a healthier "maintenance" stage, which is conducive to prolonging the Production Phase.

• Improved Yield and Efficiency: Cells can use nutrients more efficiently and direct more carbon sources to the synthesis of target proteins, instead of wasteful lactic acid production.

How to Control and Manage Lactate Metabolism?

Process developers minimize lactic acid accumulation and promote its later consumption through multiple strategies:

1. Medium Optimization:

• Control Glucose Concentration: Use the Perfusion process or Dynamic Feeding strategy to maintain the glucose concentration at a low but non-limiting level (e.g. ~ 2-4 mM) to avoid excessive sugar concentration leading to "Overflow Metabolism" and massive production of lactate.

• Alternative Carbon Sources: Adding Glutamine, Glutamate, or other amino acids as alternative energy sources can reduce dependence on glucose.

2. Process Parameter Control:

• pH: Optimize the pH setting point (usually around 7.0), a slightly higher pH may be beneficial for lactate consumption.

• Dissolved Oxygen (DO): Optimize dissolved oxygen levels and avoid situations where they are too low (leading to anaerobic metabolism) or too high (creating oxidative stress).

Metabolic Engineering

Modifying CHO Cells by Genetic Engineering Techniques:

• Down-regulate LDH Activity: Reduce the expression or activity of lactate dehydrogenase, and reduce lactate production from the source.

• Introduce Lactate Transporter: Promote the excretion or uptake of lactate from cells and reduces intracellular acidosis.

• Enhance Mitochondrial Function: Promote pyruvate into mitochondria for oxidative metabolism rather than conversion to lactic acid.

These modifications can produce "low lactate" or "lactate phenotype switched" cell lines, significantly improving culture performance.

Conclusion

Table 1: Characteristics of lactic acid in different phases of cell culture

Lactate metabolism is a key indicator of the metabolic status of CHO cells. Understanding and controlling lactic acid metabolism is the core of achieving high-density, long-term, and high-efficiency cell culture processes, thereby greatly increasing the production of biopharmaceuticals. Modern advanced process analysis techniques (PAT) and metabolic flux analysis (MFA) are being used to monitor and optimize this process in more refined real time.

By maintaining the pH at an optimal level, cellular metabolism can be guided in a more efficient and less waste direction, nutrient utilization efficiency can be improved, and the accumulation of inhibitory by-products such as lactate and ammonium can be reduced.

Bio-Link’s CytoLinX^® BR 10-2000L Single-use  Bioreactor and CytoLinX^® RW Single-use Rocking System are equipped with advanced PID feedback control technology, pH, dissolved oxygen, temperature, etc. Its software interface is friendly and complies with the requirements of 21 CFR Part 11 regulations to ensure the integrity and traceability of data. It is equipped with pH and DO control units, which are responsive and quick. The pH changes can be cascaded with CO2, alkali pump, and acid pump to achieve online monitoring of pH values.

Bio-Link's CytoLinX^® RW Single-use Rocking System

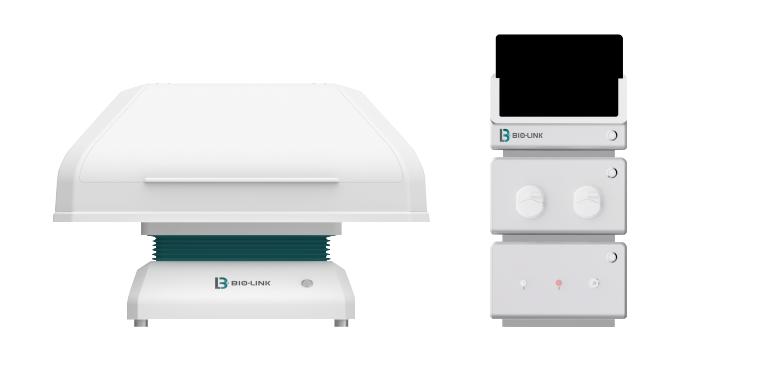

Figure 1: Bio-Link's CytoLinX^® RW Single-use Rocking System

Features

• The software interface is easy to operate, stable, and supports audit trail;

• 10 L, 20 L, 50 L tray specifications are available. It allows convenient replacement and quick installation of trays and culture bags with no need to disassemble and unscrew screws;

• Supports perfusion and automatic calibration of pump flow rate for accurate feeding and harvesting;

• Aeration, pH/DO, and perfusion modules are optional, depending on process requirements;

• Add part of the linkage design, which is more suitable for cell therapy customer application scenarios;

• Precise measurement of gases with mass flow controllers (MFC)

Bio-Link's CytoLinX^® BR Single-use 10-2000L Bioreactors

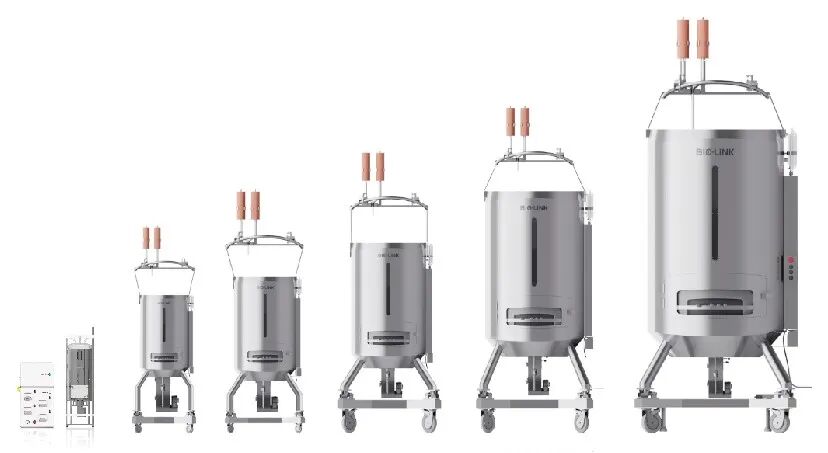

Figure 2: Bio-Link's CytoLinX^® BR Single-use 10-2000L Bioreactors

Features

• The tank body has a good shape and structure and complete functions. A single controller supports the control of multiple vessels by plugging and unplugging,
  which contributes to significant cost reduction (vessel volumes of different sizes can be provided according to process requirements to support process scale-up);

• PCS 7 system that meets ISA 88 standard, applicable for whole-plant control;

• The software is designed with user-friendly interface in compliance with 21 CFR Part 11;

• Flexible configurations, partly customizable upon customer requirements;

• The main parts are all high-end brands and passed the inspection before leaving the factory to ensure normal operation;

• Micro, medium, macro spargers available to meet various processing needs.
