Say Goodbye to Choice Phobia! Puredex® G-25M Desalting Column Selection Guide: 5mL and 20mL Are No-brainers

Table of Content [Hide]

Dear lab colleagues, are you struggling with choosing the specifications for Puredex^® G-25M Desalting Prepacked Column? 1mL, 4.7 mL, 5mL, 20mL... Faced with these options, how to make the best choice?

Today, we let real desalting chromatogram data and column specifications speak for themselves—revealing the science behind selecting the ideal Puredex^® G-25M prepacked caolumn.

Size Matters: Understanding the Design Logic Behind Different Specifications

First, let's look at the size differences between the four empty columns:

Specification	Column Dimensions (Diameter × Height)	Bed Volume	Design Features
1mL	7.7×25mm	~1 mL	Short and narrow, for rapid screening tests
4.7mL	7.7×100mm	~4.7 mL	Tall and narrow, prioritizes resolution
5mL	16×25mm	~5 mL	Short and wide, prioritizes throughput
20mL (16/100)	16×100mm	~20 mL	Standard column, balanced design

Table 1: Specification dimensions of empty columns

Comparatively, the design of 1mL 7.7 mm narrow diameter and short column bed height determines its rapid screening characteristics; The design of 7.7 mm narrow diameter and long column bed height of 4.7 mL determines its priority on resolution; Both 5mL and 20mL are designed with a wide diameter of 16mm, which determines their priority on throughput.

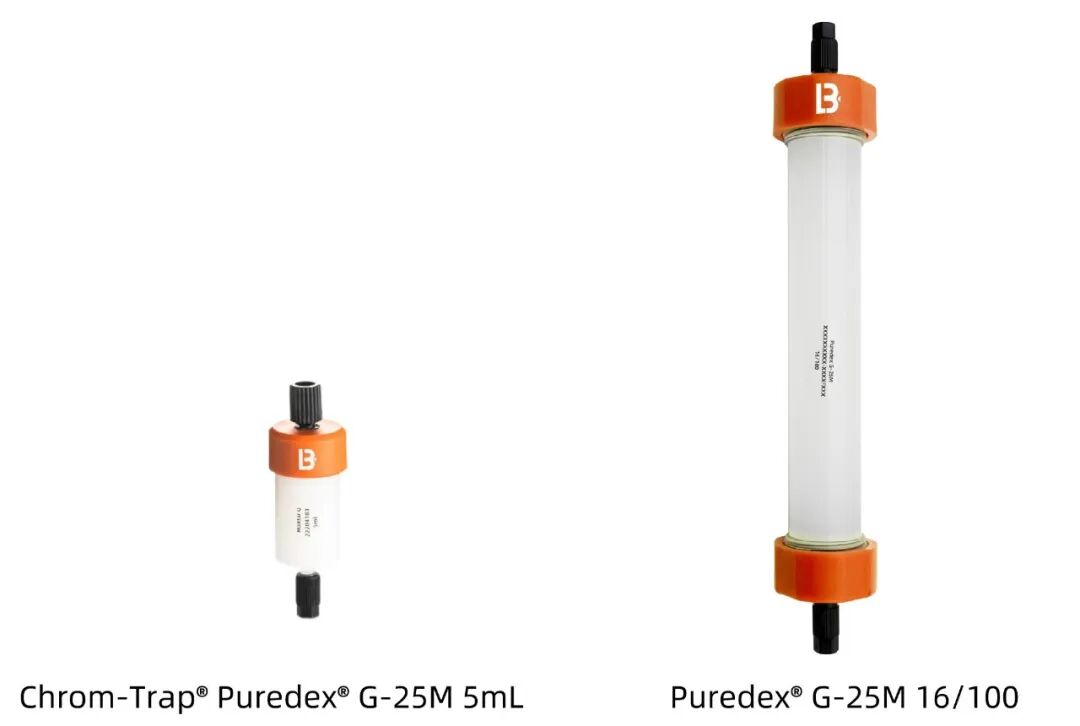

Figure 1: Puredex^® G-25M Prepacked Column

Revealed by Chromatograms: Why Do 5mL and 20mL Stand Out for Desalting?

Different volumes Puredex^® G-25M Desalting Comparison:

Resin: Puredex^® G-25M
Chromatography Column: 1mL, 4.7 mL, 5mL, 20mL
Sample: BSA (50 mM PB, 500 mM NaCl, pH 7.0)
Sample Volume: 5% column volume
Flow Rate: 100 cm/h
Buffer: 50 mM PB, pH 7.0

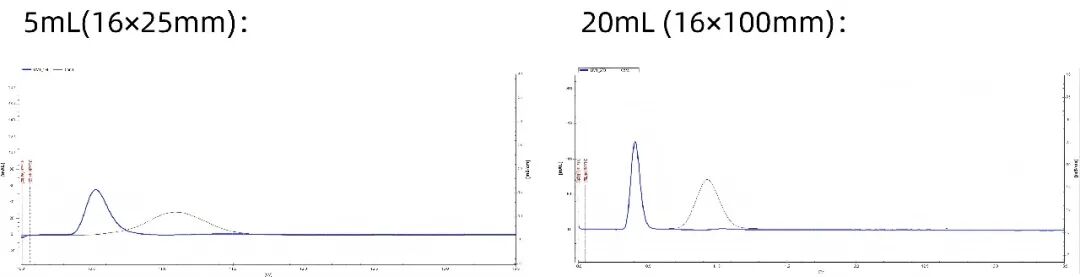

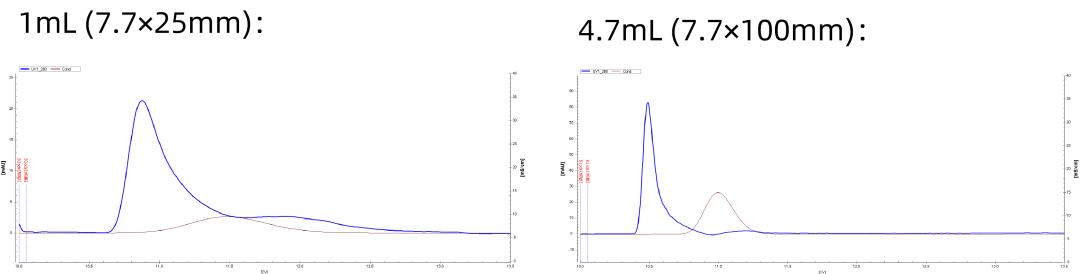

Figure 2: Puredex^® G-25M desalting chromatogram

From the analysis of the desalting chromatogram, it was found that:

1mL (7.7×25mm)：

Advantages: Narrow and short type can quickly screen resins
Limitations: Low column bed height, incomplete sample desalination, and actual separation effect is not optimal

4.7mL (7.7×100mm)：

Advantages: Narrow diameter, 100mm column bed height, highest theoretical resolution
Limitations: Too narrow diameter, limited flow rate, easy to generate high pressure, not suitable for large volume samples

5mL (16×25mm)：

Golden Combination: 16mm diameter provides excellent flow rate, 25mm height optimizes separation time
Chromatogram Shows: High separation efficiency, ability of rapid sample desalting.

20mL (16×100mm)：

Process-level Design: 16mm diameter ensures flow rate, 100mm column height provides large sample loading space
Chromatogram Shows: Sharp and symmetrical peak shape, high separation efficiency, and minimal sample dilution effect

Accurate Matching of Application Scenarios

First choice 5mL (16 × 25 mm)-The undisputed “workhorse" for daily experiments:

Daily Post Protein Purification Buffer Change
Desalination treatment of precious samples such as antibodies and enzymes
Routine experiments that need to be completed quickly and guaranteed recovery
Key Advantages: Short column bed (25mm) reduces sample residence time in the column, reduces sample dilution, and the recovery rate is usually > 95%

Upgraded 20 mL (16 × 100 mm)-the "expert” for large volume processing:

Preliminary treatment of crude samples such as cell culture supernatant and fermentation broth
Stability validation during process development stage, which requires multiple repeated experiments
Direct handling of high concentration samples
Key advantage: 100mm column height provides sufficient separation distance to ensure resolution even for large samples

In-depth Analysis of Technical Details

Why Is Diameter Change So Important?

7.7 mm Narrow Column: Suitable for analytical-grade applications but sensitive to sample viscosity
16mm Wide Column: Reduces column pressure, improve processing capacity, and is more suitable for preparation-grade needs

How Does Column Height Affect Separation?

25mm Short Column: Quick separation, suitable for simple desalination (buffer change)
100mm Long Column: Provides more theoretical plates, suitable for complex samples or higher purity needs

"Chunky" Advantage of 5 mL (16 × 25 mm)

Low Pressure Operation: Increased diameter, lower column pressure at same flow rate
Quick Separation: 25mm column height means shorter runtime

Laboratory Hands-on Techniques

When 5 mL (16 × 25 mm) Is Used:

Recommended operating flow rate: 1-10 mL/min
Recommended sample volume: 0.1-1.5 mL
Regeneration recommendation: Can be reused 5-10 times to maintain good performance

When 20 mL (16 × 100 mm) is used:

Optimal flow rate: 3-14 mL/min
Recommended sample volume: ≤ 6 mL
Special application: Suitable for handling crude samples containing tiny particles, not easy to block

When using pre-packed columns of different specifications, please note:

For all specifications, avoid column bed drying.
Viscosity significantly affects performance. Reduce flow rate for high-viscosity samples.
It is recommended to optimize the conditions with small size first, and then enlarge them to large size in parallel.

Conclusion

The specification differences of Puredex^® G-25M desalting prepacked columns are not merely changes in volume numbers, but rather a reflection of the scientific design of column dimensions. Through the clever combination of diameter and height, the 5mL (16 × 25 mm) size achieves a golden balance of flux and resolution, while the 20mL (16 × 100 mm) size provides a reliable solution for large-volume sample processing.

Understanding the size science behind these can make your experimental design more accurate and efficient!

Cat. No.

Bulk Resin
Product Name	Cat.No.	Pack Size
Puredex^®G-25M	1050-2140	25 g
	1050-2148	50 g
	1050-2141	100 g
	1050-2142	500 g
	1050-2143	1 kg
	1050-2144	5 kg

Pre-packed Volume
Product Name	Cat.No.	Pack Size
Chrom-Trap® Puredex^®G-25M 5 mL	2050-2143	1×5 mL
Puredex^®G-25M 16/100	2050-2144	16/100
