ADC “Biological Missile” Production Code Series 1 | ADC Conjugation Reaction: The “Stability” Imperative: How Single-Use Mixing Systems Safeguard the DAR Value Lifeline?

Table of Content [Hide]

DAR – The "Lifeline" Parameter of ADC

In the development of antibody-drug conjugates, a core parameter is vividly referred to as the "lifeline" – the Drug-to-Antibody Ratio (DAR). DAR directly determines the potency, pharmacokinetic profile, and safety of an ADC drug. It represents the average number of small-molecule toxins conjugated to each antibody molecule. Even minor fluctuations in this number can alter the drug's performance in the human body. However, controlling DAR is not an easy task. Particularly during the conjugation reaction step, subtle changes in process conditions can cause DAR values to drift.

It is against this backdrop that single-use mixing systems are emerging as key equipment for safeguarding the DAR "lifeline" in ADC conjugation processes.

The "Multiple Challenges" of the Conjugation Reaction

The unique aspect of ADC conjugation is that it is a hybrid "biological + chemical" production route. The reaction system contains both monoclonal antibodies (biological macromolecules), which are highly sensitive to temperature, pH, and shear force, and hydrophobic toxins or Linker-Payload (chemical small molecules) that require organic solvents to dissolve.

To achieve stable and uniform conjugation, organic solvents such as dimethyl sulfoxide (DMSO), dimethylacetamide (DMAc), and dimethylformamide (DMF) are typically introduced into the process. While these solvents aid in dissolving the small molecules, they also bring dual challenges:

01 Challenge 1: High Shear Force Risk

Conventional stainless steel mixing tanks can easily generate localized high shear force during high-speed mixing, potentially damaging antibody structures or inducing aggregation. The appearance of aggregates not only affects the accuracy of DAR measurement but may also raise immunogenicity risks.

02 Challenge 2: Chemical Compatibility Hurdle

Organic solvents pose a severe test to the film materials, tubing, and connectors of single-use systems. Improper material selection can lead to swelling, leakage, or even component failure, directly impacting the stability of the reaction environment and product safety.

The interplay of these two challenges makes DAR control one of the most difficult aspects of the ADC conjugation process.

How Single-Use Mixing Systems "Break the Deadlock"

The reason single-use mixing systems stand out in ADC conjugation lies in their ability to strike a balance between "mixing" and "protection."

01 Low-Shear Design: Preserving Antibody Activity

ADC conjugation requires rapid homogeneity in the reaction system to avoid localized high concentrations – because localized high concentrations of toxins can trigger non-specific reactions or the formation of by-products. However, high-speed mixing often accompanies high shear force.

The BioLink BioHub^®BM Single-Use Mixing System, paired with the BioHub^® Single-Use Mixing Bag, achieves excellent mixing efficiency while maintaining low shear force through impeller design and Computational Fluid Dynamics (CFD) optimization.

This means that while the reaction system is thoroughly mixed, the structural integrity of the antibody molecules is maximally protected – a prerequisite for stable and controllable DAR values.

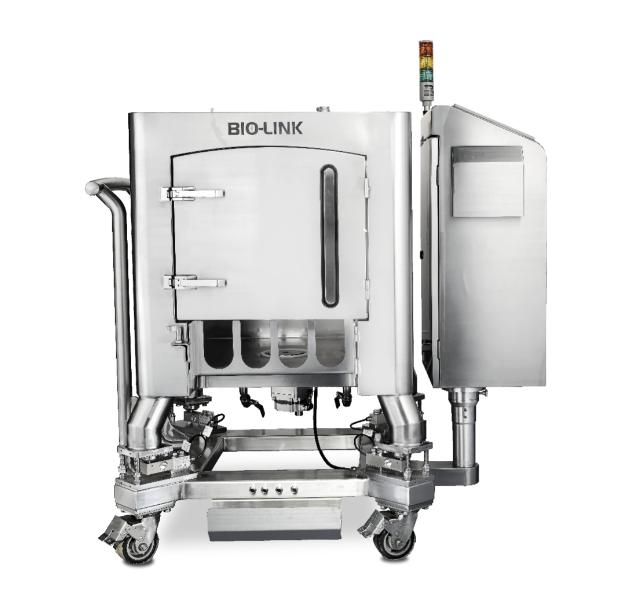

Figure 1: BioHub^® BM Single-Use Mixing System

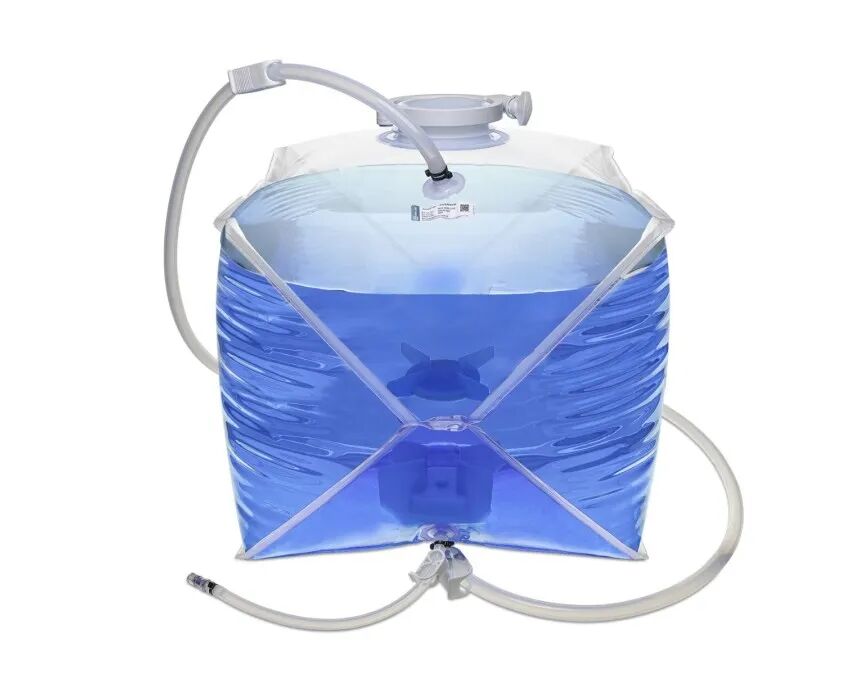

Figure 2: BioHub^® Single-Use Mixing Bag

02 Precise Process Control: Locking in the Reaction Endpoint

The progress of the conjugation reaction directly determines the final DAR value. Traditional "add-and-stop" models struggle to manage batch-to-batch variability. In contrast, the BioLink BioHub^® BM Single-Use Mixing System locks in the reaction process with high precision by integrating high-accuracy temperature control and pH control functions.

This "process control" approach safeguards batch-to-batch DAR consistency at the source more effectively than mere "end-product testing."

Chemical Compatibility: The Leap from "Usable" to "Reliable"

If low shear force and precise control represent the "soft power" ensuring DAR accuracy, then chemical compatibility is the "hard bottom line" guaranteeing process safety.

The concentration of organic solvents in ADC conjugation processes varies depending on the specific process: the final concentration in the reaction system is typically between 10% and 25%, whereas during the addition of small-molecule solutions, some tubing or connectors may be briefly exposed to organic solvents at concentrations approaching 100%.

BioLink provides validated chemical compatibility data. Process components (including film, tubing, connectors, impeller, etc.) demonstrate excellent tolerance after exposure to 35% DMSO, 35% DMAc, and 35% DMF. No significant defects are observed after short-term exposure to 100% DMSO, 100% DMAc, and 100% DMF (with connectors made of PP material).

These validation data elevate the single-use mixing system from "potentially usable" to a "reliable process choice."

Single-Use Mixing Bag: Closed Design and High Customizability

The BioHub^® Single-Use Mixing Bag features a closed design. The tubing enables rapid aseptic connections. The fluid transfer process has no exposure risk, fully protecting operator health. Meanwhile, the mixing bag supports customization to meet different process requirements, offering high flexibility.

The value of single-use mixing systems in ADC conjugation is no longer limited to "convenience" and "no cleaning required." They are becoming precise actuators for DAR control – protecting antibody activity through low-shear mixing, locking in the reaction endpoint through process control, and ensuring operational safety through material validation.

Summary

For ADC processes, safeguarding the DAR "lifeline" begins with selecting a thoroughly validated single-use mixing system. After all, at the intersection of "biology + chemistry" that is conjugation reaction, "stability" is the true key to success.
