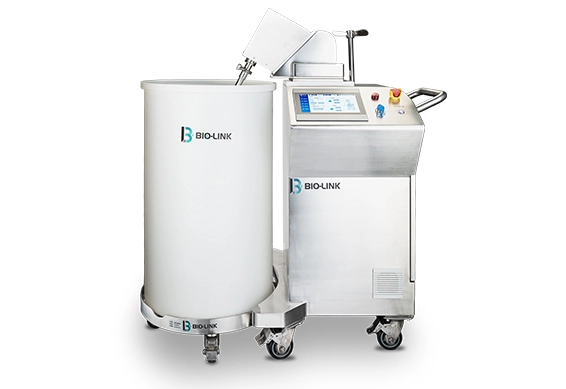

3d single use storage bags 2

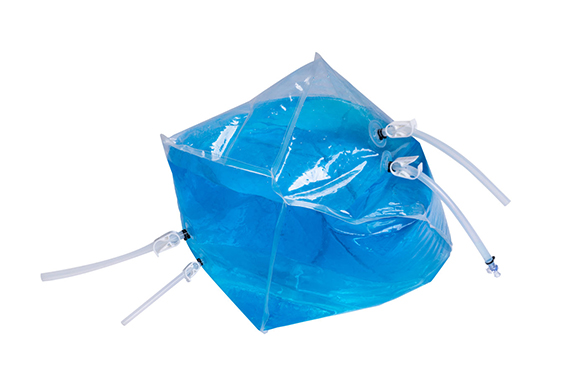

BioHub® 3D Single-Use Storage Bags

BioHub® 3D Single-Use Storage Bags are designed for bioprocess needs. This 3D biocontainer is suitable for liquid mixing, storage, transport, and cryopreservation.

Inquiry
Download
Features Quality Specifications Bins Specialties Contact us

BioHub® 3D Storage Bags are suitable for all types of BioLink plastic and stainless steel containers. We solved the problem of bag size inconsistency for the 3D-matched containers of different brands by standardizing the bag size to match the common 3D containers on the market, facilitating quick delivery. BioHub® 3D Storage Bags range from 50 L to 3000 L, and two types of silicone tubing and thermoplastic tubing are available to meet the requirements of all kinds of liquid transfer and storage.



Features of BioHub® 3D Single-Use Storage Bags

Bioprocess Containers


•   The 3D storage bags are made of High Density Polyethylene (HDPE) with good chemical stability and good resistance to acid, alkali, and various salts at room temperature

•   The flared design is convenient for flanging and fixing liners

•   Clean and uniform materials with smooth inner walls, preventing damage to the soft bags

•   Operating temperature range: − 20 ° C to 60 ° C (autoclave not allowed)

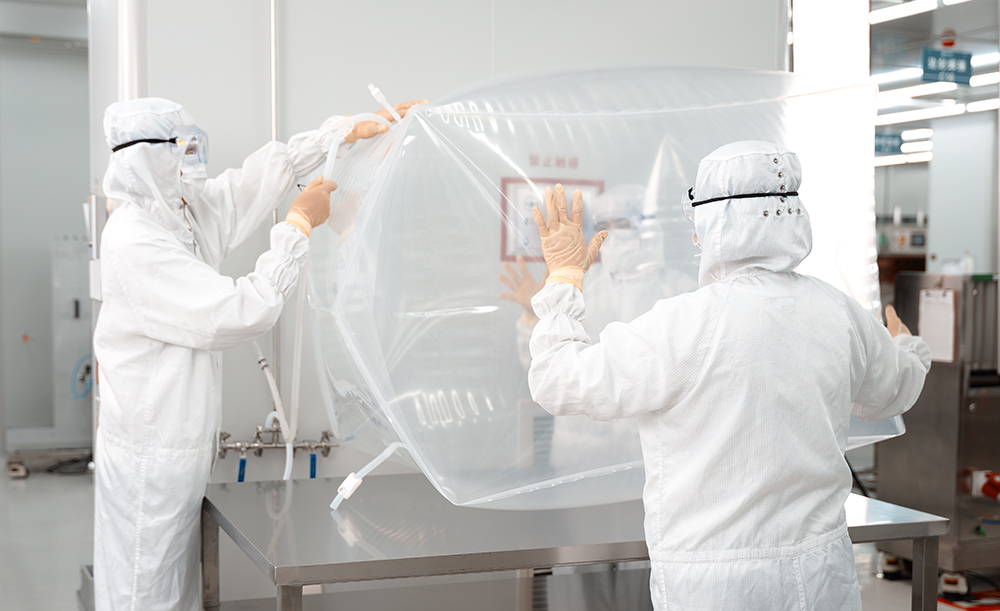

Single Use Bioprocess Container


3D Single-Use Storage Bags Quality Control

  • In controlled environments (ISO Class 7 environments)

  • Following ISO 9001:2015 certified quality system

  • Animal-derived component-free (ADCF)

  • Meets USP <87>, USP <88> Class VI, USP <661>, USP<85>, USP <788>, ISO11737-1, ISO11737-2, and ISO11137 for liquid contact materials

  • Document support: Shipped with COQ or COA

  • Sterilization: 25–40 kGy of gamma

  • Shelf life: 2 years

  • Packaging: Double bagged


Specifications of BioHub® 3D Biocontainers and Matching Bins

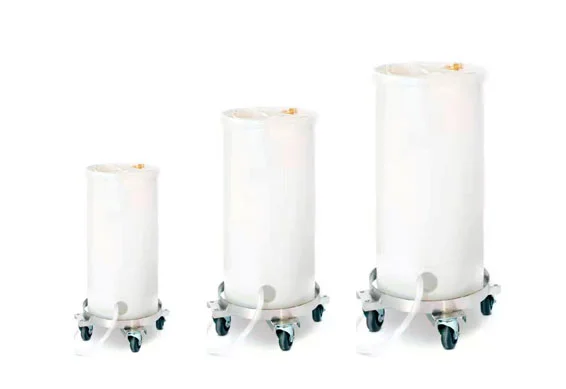

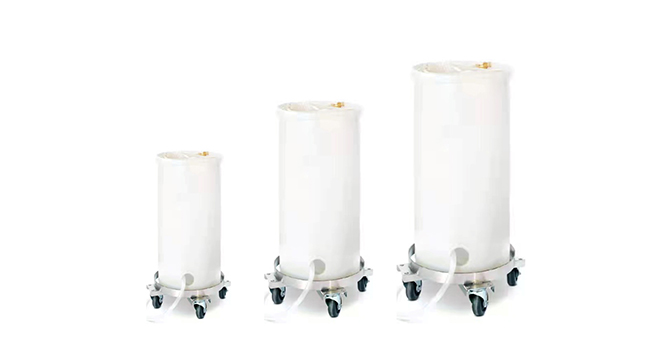

Storage bag: matching circular plastic bin

  • Regular bags

Part numberMatch typeSpecificationLine 1Line 2Line 3
BBPR-0050-S001BioLink plastic
bin		50 L50cm ID3/8"*OD5/8"
Platinum cured silicone tubing + female MPC connector		50 cm ID3/8"*OD5/8"
Platinum cured silicone tubing + male MPC connector		30 cm ID1/4"*OD7/16"
Platinum cured silicone tubing + needleless sampling valve
BBPR-0050-S002BioLink plastic
bin		50 L50cm ID3/8"*OD5/8"
Thermoplastic tubing+ plug		50cm ID3/8"*OD5/8"
Thermoplastic tubing + plug		30 cm ID1/4"*OD7/16"
Thermoplastic tubing +
needleless sampling valve
BBPR-0100-S001BioLink plastic
bin		100 L50cm ID3/8"*OD5/8"
Platinum cured silicone tubing +
female MPC connector		50 cm ID3/8"*OD5/8"
Platinum cured silicone tubing +
male MPC connector		30 cm ID1/4"*OD7/16"
Platinum cured silicone tubing +
needleless sampling valve
BBPR-0100-S002BioLink plastic
bin		100 L50cm ID3/8"*OD5/8"
Thermoplastic tubing + plug		50cm ID3/8"*OD5/8"
Thermoplastic tubing + plug		30 cm ID1/4"*OD7/16"
Thermoplastic tubing +
needleless sampling valve
BBPR-0200-S001BioLink plastic
bin		200 L50cm ID3/8"*OD5/8"
Platinum cured silicone tubing +
female MPC connector		50 cm ID3/8"*OD5/8"
Platinum cured silicone tubing +
male MPC connector		30 cm ID1/4"*OD7/16"
Platinum cured silicone tubing +
needleless sampling valve
BBPR-0200-S002BioLink plastic
bin		200 L50cm ID3/8"*OD5/8"
Thermoplastic tubing + plug		50cm ID3/8"*OD5/8"
Thermoplastic tubing + plug		30 cm ID1/4"*OD7/16"
Thermoplastic tubing +
needleless sampling valve
BBPR-0300-S001BioLink plastic
bin		300 L50 cm ID1/2"*OD3/4"
Platinum cured silicone tubing +
female MPX connector		50 cm ID1/2"*OD3/4"
Platinum cured silicone tubing +
male MPX connector		30 cm ID1/4"*OD7/16"
Platinum cured silicone tubing +
needleless sampling valve
BBPR-0300-S002BioLink plastic
bin		300 L50 cm ID1/2"*OD3/4"
Thermoplastic tubing + plug		50 cm ID1/2"*OD3/4"
Thermoplastic tubing + plug		30 cm ID1/4"*OD7/16"
Thermoplastic tubing +
needleless sampling valve
BBPR-0500-S001BioLink plastic
bin		500 L50 cm ID1/2"*OD3/4"
Platinum cured silicone tubing +
female MPX connector		50 cm ID1/2"*OD3/4"
Platinum cured silicone tubing +
male MPX connector		30 cm ID1/4"*OD7/16"
Platinum cured silicone tubing +
needleless sampling valve
BBPR-0500-S002BioLink plastic
bin		500 L50 cm ID1/2"*OD3/4"
Thermoplastic tubing + plug		50 cm ID1/2"*OD3/4"
Thermoplastic tubing + plug		30 cm ID1/4"*OD7/16"
Thermoplastic tubing +
needleless sampling valve

  • Open bags

Open bagsMatch typeSpecificationTopBottom
BBLR-0050-S001BioLink plastic bin50 LOpen designNo outlet pipe
BBLR-0050-S002BioLink plastic bin50 LOpen design50 cm ID3/8" *OD5/8" platinum cured silicone tubing + male MPC connector
BBLR-0100-S001BioLink plastic bin100 LOpen designNo outlet pipe
BBLR-0100-S002BioLink plastic bin100 LOpen design50 cm ID3/8" *OD5/8" platinum cured silicone tubing + male MPC connector
BBLR-0200-S001BioLink plastic bin200 LOpen designNo outlet pipe
BBLR-0200-S002BioLink plastic bin200 LOpen design50 cm ID3/8" *OD5/8" platinum cured silicone tubing + male MPC connector
BBLR-0300-S001BioLink plastic bin300 LOpen designNo outlet pipe
BBLR-0300-S002BioLink plastic bin300 LOpen design50 cm ID1/2" *OD3/4" platinum cured silicone tubing + male MPX connector
BBLR-0500-S001BioLink plastic bin500 LOpen designNo outlet pipe
BBLR-0500-S002BioLink plastic bin500 LOpen design50 cm ID1/2" *OD3/4" platinum cured silicone tubing + male MPX connector

  • Open bags

Part numberMatch typeSpecificationTopBottom
BTLR-0019-S001Nalgene circular bins19 LOpen designNo outlet pipe
BTLR-0019-S002Nalgene circular bins19 LOpen design50 cm ID1/4" *OD7/16" platinum cured silicone tubing + male MPC connector
BTLR-0028-S001Nalgene circular bins28 LOpen designNo outlet pipe
BTLR-0028-S002Nalgene circular bins28 LOpen design50 cm ID1/4" *OD7/16" platinum cured silicone tubing + male MPC connector
BTLR-0038-S001Nalgene circular bins38 LOpen designNo outlet pipe
BTLR-0038-S002Nalgene circular bins38 LOpen design50 cm ID1/4" *OD7/16" platinum cured silicone tubing + male MPC connector
BTLR-0057-S001Nalgene circular bins57 LOpen designNo outlet pipe
BTLR-0057-S002Nalgene circular bins57 LOpen design50 cm ID3/8" *OD5/8" platinum cured silicone tubing + male MPC connector
BTLR-0113-S001Nalgene circular bins113 LOpen designNo outlet pipe
BTLR-0113-S002Nalgene circular bins113 LOpen design50 cm ID3/8" *OD5/8" platinum cured silicone tubing + male MPC connector
BTLR-0208-S001Nalgene circular bins208 LOpen designNo outlet pipe
BTLR-0208-S002Nalgene circular bins208 LOpen design50 cm ID3/8" *OD5/8" platinum cured silicone tubing + male MPC connector
BTLR-0303-S001Nalgene circular bins303 LOpen designNo outlet pipe
BTLR-0303-S002Nalgene circular bins303 LOpen design50 cm ID1/2" *OD3/4" platinum cured silicone tubing + male MPX connector
BTLR-0378-S001Nalgene circular bins378 LOpen designNo outlet pipe
BTLR-0378-S002Nalgene circular bins378 LOpen design50 cm ID1/2" *OD3/4" platinum cured silicone tubing + male MPX connector
BTLR-0568-S001Nalgene circular bins568 LOpen designNo outlet pipe
BTLR-0568-S002Nalgene circular bins568 LOpen design50 cm ID1/2" *OD3/4" platinum cured silicone tubing +male MPX connector

You may also be interested in BioHub® 2D Single-use Storage bags (2D Biocontainer)


3D Storage Bags and Matching Supporting Bins

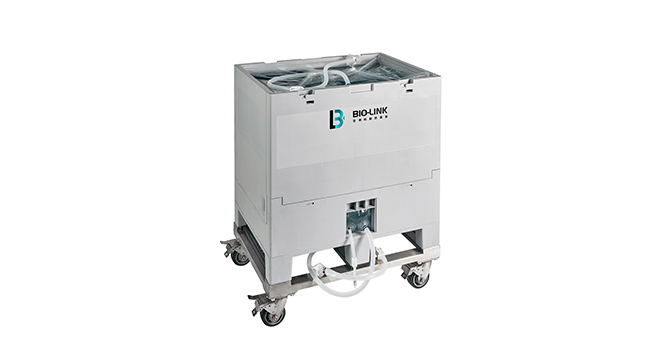

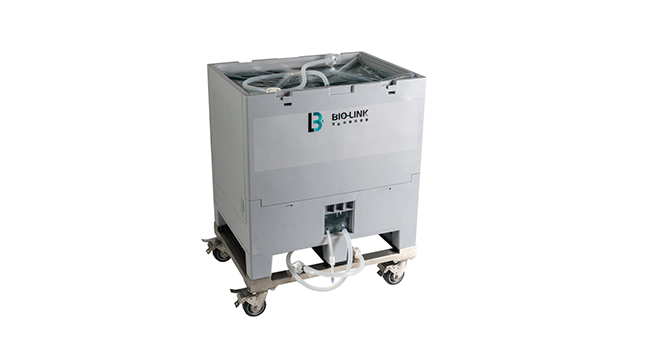

Storage bags: matching cubic foldable plastic bins

  • Regular bags

Part numberMatch typeSpecificationLine 1Line 2Line 3
BBPC-0100-S001BioLink
plastic bin		100 L50cm ID3/8"*OD5/8"
Platinum cured silicone tubing + female MPC connector		50cm ID3/8"*OD5/8"
Platinum cured silicone tubing + male MPC connector		30 cm ID1/4"*OD7/16"
Platinum cured silicone tubing + needleless sampling valve
BBPC-0100-S002BioLink
plastic bin		100 L50cm ID3/8"*OD5/8"
Thermoplastic tubing + plug		50cm ID3/8"*OD5/8"
Thermoplastic tubing + plug		30 cm ID1/4"*OD7/16"
Thermoplastic tubing + needleless sampling valve
BBPC-0250-S001BioLink
plastic bin		250 L50cm ID3/8"*OD5/8"

Platinum cured silicone tubing + female MPC connector

50cm ID3/8"*OD5/8"
Platinum cured silicone tubing +male MPC connector		30 cm ID1/4"*OD7/16"
Platinum cured silicone tubing + needleless sampling valve
BBPC-0250-S002BioLink
plastic bin		250 L50cm ID3/8"*OD5/8"
Thermoplastic tubing + plug		50cm ID3/8"*OD5/8"
Thermoplastic tubing + plug		30 cm ID1/4"*OD7/16"
Thermoplastic tubing + needleless sampling valve
BBPC-1000-S001BioLink
plastic bin		1000 L50 cm  ID3/4"*OD1"
Platinum cured silicone tubing + TC50		50 cm  ID3/4"*OD1"
Platinum cured silicone tubing + TC50		30 cm ID1/4"*OD7/16"
Platinum cured silicone tubing + needleless sampling valve
*Customizable upon request. Contact BioLink experts in your location for your needs.

  • Product specifications

ItemCubic Foldable Plastic Bins 250 LCubic Foldable Plastic Bins 1000 L
Part numberARCABIN0250L001ARCABIN1000L001
Capacity - Internal/external264L/0.41CBM1060L/1.51CBM
Matching bags100L, 250L500L, 1000L
Outer dimensions - unfolded, with cover809*609*833 mm1155*1155*1132 mm
Outer dimensions - unfolded, without cover800*600*810 mm1145*1145*1110 mm
Inner dimensions740*540*660 mm1065*1045*940 mm
Outer dimensions - height after folded403 mm467 mm
Footprint0.5 m21.33m2
Weight20 kg89 kg
Maximum dynamic capacity700 kg (2 layers)2,977 kg (2 layers)
Maximum static capacity1,750 kg (5 layers)7,442 kg (5 layers)
MaterialPP
Operating temperature range-20 ℃ to +60 ℃

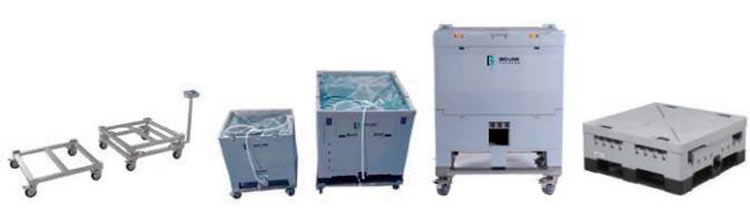

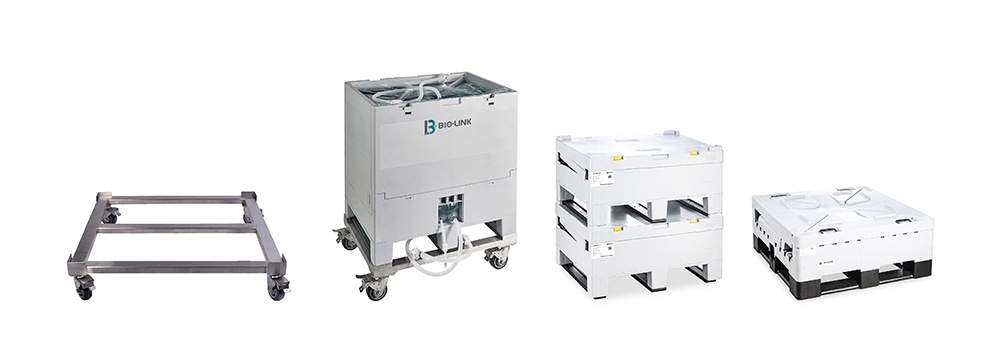

Carts for cubic foldable plastic bins

Part numberMatching Cubic
Foldable Plastic Bins		MaterialConfigurationWheelsCart Dimensions (mm)Cart
Weight
ACART0250L001
ACART1000L001		250 L
1000 L		SS 304LRegular4 brake
wheels		600*800*200
1,161*1,161*243		28 kg
35 kg
ACART0250L002
ACART1000L002		250 L
1000 L		SS 304LWith load cell,
With 4–20 mA output		4 brake
wheels		1,048*600*820 (instrument height 1,010)
1,061*1,360*425 (instrument height 1,090)		35 kg
45 kg


                  Carts for Cubic Foldable Plastic Bins                                                                  Cubic Foldable Plastic Bins



Products

BioHub® 3D Single-Use Storage Bags

A variety of membrane material selections, 3D biocontainers can be applied to a variety of intermediate liquid storage and transport.

Full Compliance: Meets USP <87>, USP <88> Class VI, USP <661>, USP<85>, USP <788>, ISO11737-1, ISO11737-2, and ISO11137 for liquid contact materials

Stable Supply: Abundant capacity, fast supply.

In addition to standard configurations, specialized in bioprocessing products, BioLink also offers RNase-free versions of 2D/3D single-use storage bags, allowing you to say goodbye to the troubles of RNase degradation!
