Chrom-LinX® 6.6 Lab-scale Chromatography Column

Chrom-LinX® 6.6 Lab-scale Chromatography Column is easy to use, high pressure resistant, and flexible column, which is suitable for process development, process validation, quality testing, and small-scale sample preparation, etc. Chrom-LinX® 6.6 has an inner diameter of 6.6 mm, with lengths of 200 mm and 330 mm, and is equipped with single/double adjustable adapters.


Inquiry
Features Main Modules Ordering Information Contact us

Features of Chrom-LinX®6.6 Lab-scale Chromatography Column

. High Pressure Resistance: Withstands pressure up to 60 bar (6 MPa, 870 psi) for high compatibility with common-used resins.

. Clear Visibility: The mm-graduated glass tube allows for precise bed height packing, improving process reproducibility.

. Ultra-low Dead Volume: Designed for lab-scale chromatography applications, offering small dead volume to reduce sample dilution, improve recovery and detection sensitivity, protecting your precious sample and reducing costs.

. Improved Separation Efficiency: Smaller column diameter helps reduce diffusion effects and improve separation efficiency, especially for polishing complex mixtures such as proteins and peptides, for sharper peak shape and better resolution.

. Excellent Scalability: Helps predict the performance of pilot and production scale chromatography columns to reduce development cycle, and improve test efficiency.

. High Flexibility: Equipped with single/ double adjustable adapters for flexible expansion of packing volume.

. Strong Compatibility: Suitable for various chromatography techniques such as gel filtration, ion exchange, affinity chromatography, and compatible with common-used laboratory chromatography systems for routine use.


Description of Chrom-LinX® 6.6 Lab-scale Chromatography Column

The Chrom-LinX® 6.6 Lab-scale Chromatography Column comes in two single/double adjustable column adapters: The column with single adjustable adapter mainly consists of an adjustable adapter, a column tube, and a fixed adapter; while the column with double adjustable adapters replaces the fixed adapter with an adjustable one. For detailed components, refer to the disassembly diagram


Ordering Information of Chrom-LinX® 6.6 Lab-scale Chromatography Column

Empty column


Cat. No.*Product Name**

Column Tube Height

(mm)

Bed Height Range

(mm)

Bed Volume Range

(mL)

2166 - 1111

Chrom-LinX®

6.6/330

330220 - 3007.5 - 10.2
2166 - 1121

Chrom-LinX®

6.6/330P

330140 - 3004.7 - 10.2
2166 - 1112

Chrom-LinX®

6.6/200

20090 - 1703.1 - 5.8
2166 - 1122

Chrom-LinX®

6.6/200p

20010 - 1700.34 - 5.8


Empty column


Cat. No.*Product Name**Quantity (/Pack)
2919 - 6601

O-ring, 6.6

5 pcs

2923 - 6601

Accessory kit, 6.6*

1 set

2936 - 6601

Filter, 6.6, 10 μm

5 pcs

2936 - 6602

Filter, 6.6, 25 μm

5 pcs

2937 - 6601

Piping assembly kit, 6.6**

1 set
2930 - 6601

Adjustable adapter, 6.6

1 pc

2931 - 6601

Column tube 330 mm, 6.6

1 pc

2931 - 6602

Column tube 200 mm, 6.6

1 pc

2932 - 6601

Fixed adapter, 6.6

1 pc


Accessory


Cat. No.*Product Name**Quantity (/Pack)
2928 - 6601Bi - pass, 6.6 mm1 pcs




**Please be advised that this product is only available for sale and after-sales support in certain regions. For further details, kindly consult with your local sales representative. Thank you for your understanding.

Products

Link With Us Now!

Want to know more about BioLink bioprocessing products? Feel free to contact BioLink now!
Email
info@biolink.com
Phone
0086-400-058-9000
ADDRESS

Other Chromatography Column You May Like

VERDOT Ips² InPlace™ Process-scale Chromatography Column VERDOT Ips² InPlace™ Process-scale Chromatography Column
Chrom-LinX<sup>®</sup> Manual Compression Chromatography Column Chrom-LinX® Manual Compression Chromatography Column

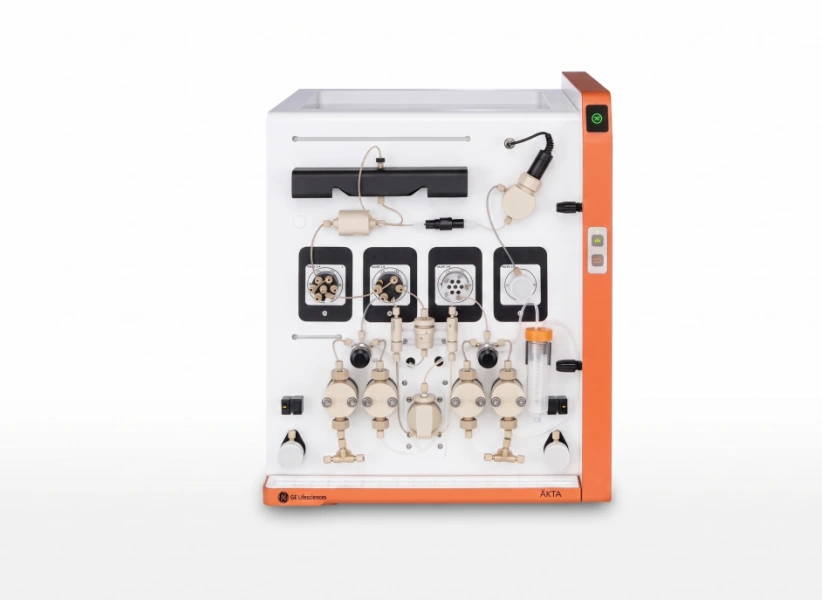

PuriLinX<sup>®</sup> Benchtop Chromatography System PuriLinX® Benchtop Chromatography System
