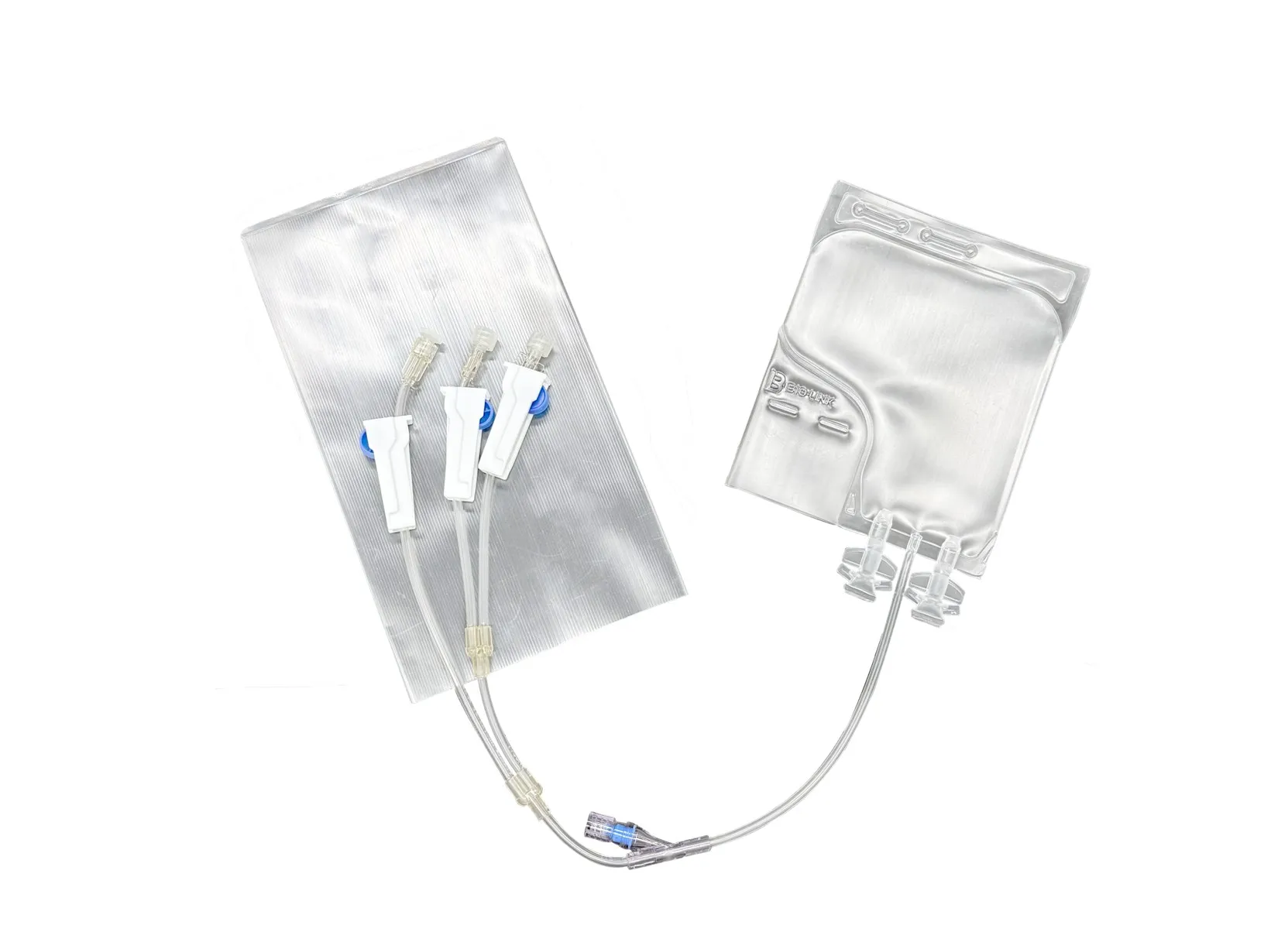

HemoLinX® CFT Freezing Bag

HemoLinX® CFT Freezing Bag is designed for safe cryopreservation at ultra-low temperatures, ensuring cell integrity and viability throughout freezing, storage, and thawing. Ideal for single-cycle cryopreservation of blood components such as hematopoietic stem cells and cord blood, etc.

Inquiry
Download
Features Quality Bottle Caps Contact us

HemoLinX® CFT Freezing Bag is designed for safe cryopreservation at ultra-low temperatures, ensuring cell integrity and viability throughout freezing, storage, and thawing. Ideal for single-cycle cryopreservation of blood components such as hematopoietic stem cells and cord blood, etc.



Features of HemoLinX® CFT Freezing Bag

Excellent Cryogenic Tolerance for Cell Safety:Both the spike ports and the bag body are made of EVA tubular film, which remains flexible and sealed even at -196°C, reducing the risks of contamination and leakage.


Versatile Sizes and Configurations for Diverse Needs: Available in 50 mL, 250 mL, 500 mL, 750 mL and 1 L, HemoLinX® CFT Freezing Bag offers flexible tubing and configuration options to suit diverse experimental and clinical needs.


Enhanced Sample Safety and Traceability: The label pouch aligns with the cryogenic storage box window of the for easy sample identification. Freezing bags are available with optional metal protective box to protect the bag during liquid nitrogen stor

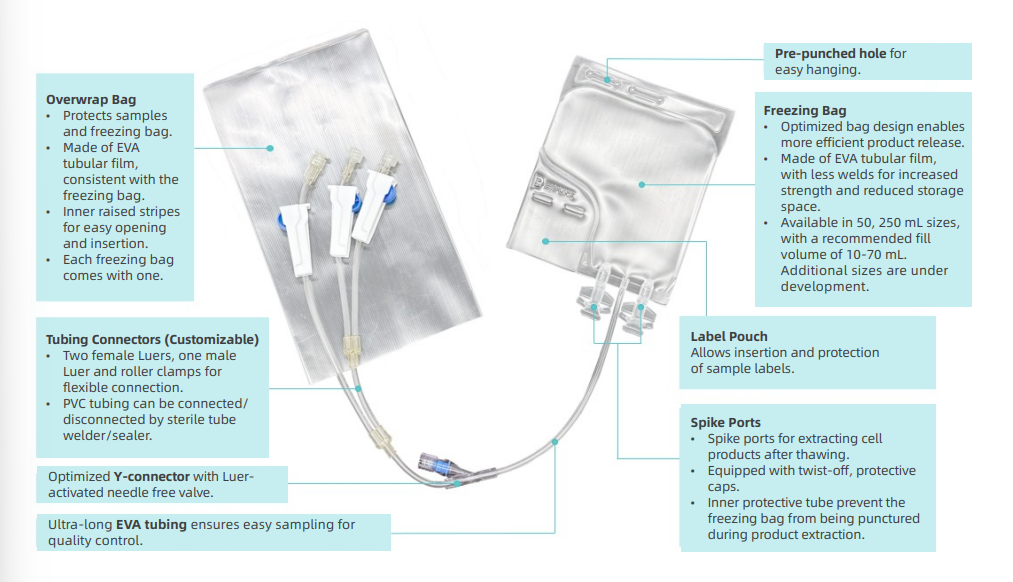

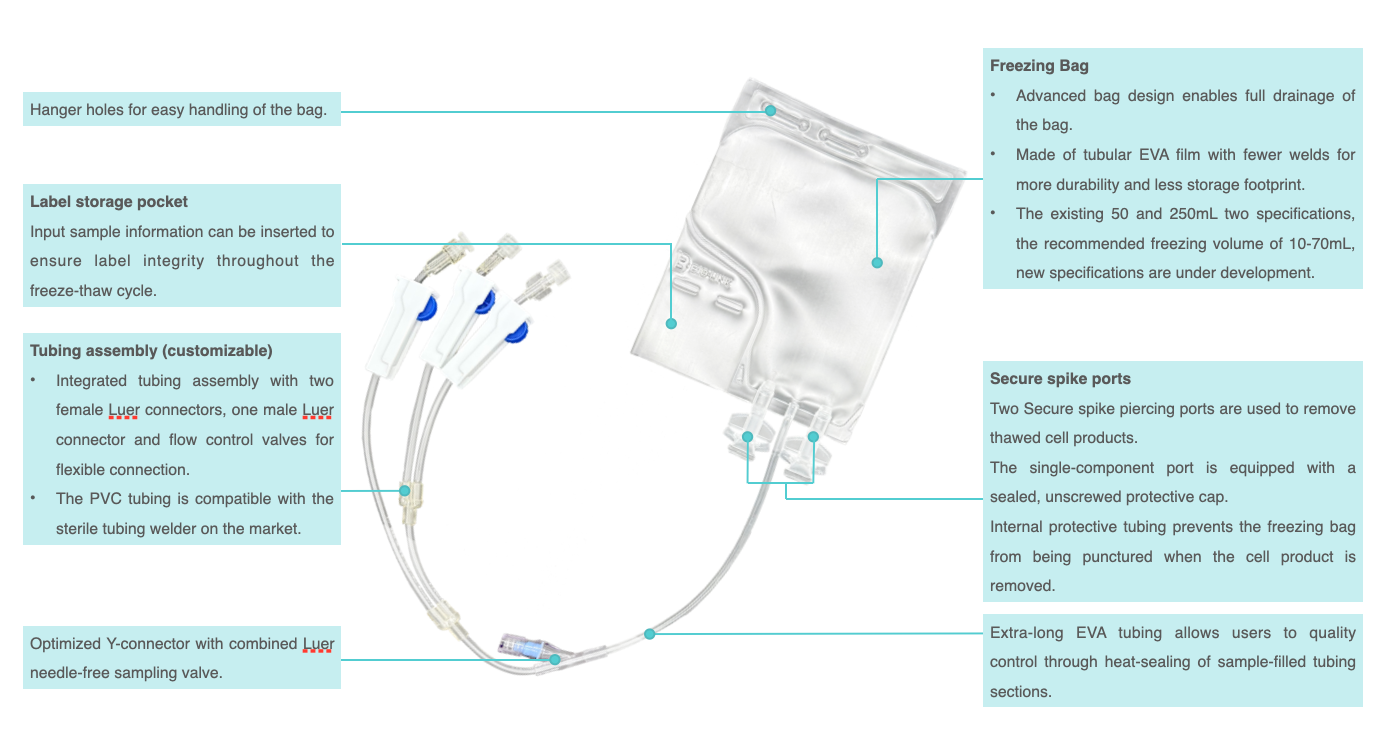

A standard HemoLinX® CFT Freezing Bag includes the following components:


Technical Data of HemoLinX® CFT Freezing Bag

Freezing Test Data

HemoLinX® CFT Freezing Bag has been fully tested and proven to maintain integrity after a single freeze-thaw cycle (Table 1).


Freezing Bag Integrity Test Result

Product Name

Cat. No.

Fill Volume

Passed Quantity

HemoLinX® CFT Freezing Bag, 250 mL

MCFT-250M-F01

70 mL

147/150

Table 1. Freezing Bag Integrity Test Results

* The three non-passes were due to pressure-induced leakage at the tubing heat seal during vacuum extraction of the overwrap bag.


Film Technical Parameters


ItemTest ValueReference Standard
Mechanical PropertiesTensile Strength26 MPaASTM D-882
Elongation at Break700%ASTM D-882
Barrier PropertiesWater Vapor Transmission Rate (23°C)4.0 g/(m² ·day)ASTM F1249
Oxygen Transmission Rate
(23°C, 0% RH)		800 cm³/(m² ·day · bar)ASTM D3985
Carbon Dioxide Transmission Rate
(23°C, 0% RH)		7000 cm³/(m² ·day · bar)ASTM F2476


Freezing Volumes

Bag Volume

Length*Width (mm*mm)

Freezing Volume Range (mL)

50 mL

154*80

10–20

250 mL

174*123

30–70

500 mL224*12355-100
750 mL280*12380-190
1L330*123125-270


Ordering Information of HemoLinX® CFT Freezing Bag

VolumeCat. No.ConfigurationMinimum     Order Quantity
50 mLMCFT-050M-F01-24Single bag, 15 cm EVA tubing, Y-connector, 15 cm PVC tubing *2, female Luer and cap1
MCFT-050M-N01-24Single bag, 15 cm EVA tubing, with needle free sampling valve straight connector,
6 cm PVC tubing, Y-connector, 20 cm PVC tubing, male Luer and cap,
6 cm PVC tubing, Y-connector, 13 cm PVC tubing *2, female Luer and cap		1
MCFT-050M-V01-24Dual bag, 15 cm EVA tubing, Y-connectors to 6 cm PVC tubing, with needle free sampling valve straight connector, 20 cm PVC tubing, female Luer and cap1
250 mLMCFT-250M-F01-24Single bag, 18 cm EVA tubing, Y- connector, 15 cm PVC tubing *2, female Luer and cap1
MCFT-250M-N01-24Single bag, 18 cm EVA tubing, with needle free sampling valve straight connector,
6 cm PVC tubing, Y-connector, 20 cm PVC tubing, female Luer and cap,
6 cm PVC tubing, Y-connector, 13 cm PVC tubing *2, female Luer and cap		1
500 mLMCFT-500M-F01-24

Single bag, 18 cm EVA tubing, Y-connector,

15 cm PVC tubing *2, female Luer and cap

1
MCFT-500M-N01-24

Single bag, 18 cm EVA tubing, with needle free sampling valve straight connector,

6 cm PVC tubing, Y-connector,

20 cm PVC tubing, male Luer and cap

6 cm PVC tubing, Y-connector, 13 cm PVC tubing *2, female Luer and cap

1
750 mL
MCFT-750M-F01-24

Single bag, 18 cm EVA tubing, Y-connector,

15 cm PVC tubing *2, female Luer and cap

1
MCFT-750M-N01-24

Single bag, 18 cm EVA tubing, with needle free sampling valve straight connector,

6 cm PVC tubing, Y-connector,

20 cm PVC tubing, male Luer and cap

6 cm PVC tubing, Y-connector, 13 cm PVC tubing *2, female Luer and cap

1
1 L
MCFT-001L-F01-24

Single bag, 18 cm EVA tubing, Y-connector,

15 cm PVC tubing *2, female Luer and cap

1
MCFT-001L-N01-24

Single bag, 18 cm EVA tubing, with needle free sampling valve straight connector,

6 cm PVC tubing, Y-connector,

20 cm PVC tubing, male Luer and cap

6 cm PVC tubing, Y-connector, 13 cm PVC tubing *2, female Luer and cap

1

**Please be advised that this product is only available for sale and after-sales support in certain regions. For further details, kindly consult with your local sales representative. Thank you for your understanding.
