New Product | BioHub® Pressure Monitoring Recorder: Real-Time Parameter Tracking, Enhanced Data Traceability, and Proactive Risk Alerts

Table of Content [Hide]

The pressure monitoring recorder is a critical device for ensuring production compliance, product quality, and operational safety. Its core functions encompass real-time monitoring, data traceability, and risk alerting across multiple key stages of the biopharmaceutical upstream and downstream processes.

BioHub® Pressure Monitoring Recorder is an electronic data logging device designed for pressure, flow, and temperature monitoring in vessels or pipelines during research, development, or production processes.

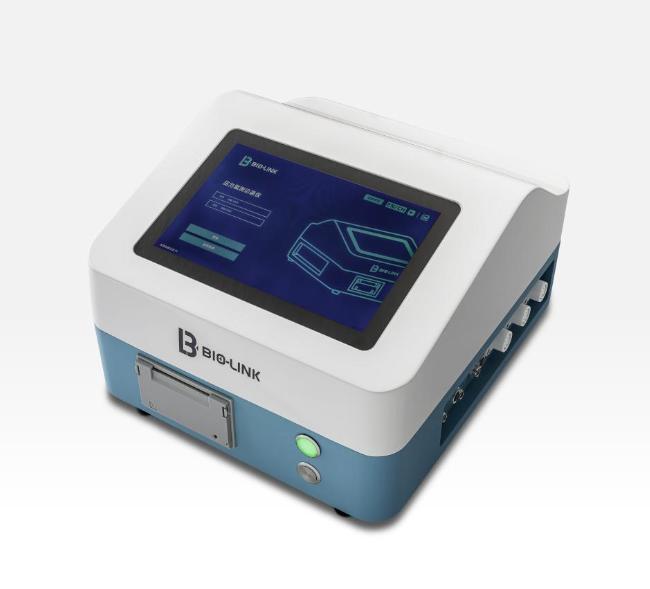

Figure 1. BioHub® Pressure Monitoring Recorder

Monitoring pressure and flow within pipelines using the BioHub® Pressure Monitoring Recorder enables you to:

Promptly detect anomalies to prevent production incidents or product contamination
Obtain more comprehensive and accurate fluid system data
Ensure your system operates in a safe and stable state

Product Features

1.Dual-parameter Monitoring: Monitors pressure, temperature, flow rate and other crucial parameters in one device. Automatically calculates and records single-point pressure, ▲P, and TMP.

2.Strong Expandability: Compatible with mainstream pressure and ﬂow sensors, meeting customer needs for diﬀerent data accuracies. Easy installation and sensor replacement.

3.Real-time Monitoring & Alerts: Monitors pressure and temperature in real-time, with preset high and low limit alarms to help identify and address issues promptly, removing potential safety risks.

4.Regulatory Compliance: The device automatically records pressure data, including timestamps and values, ensuring data integrity in accordance with regulatory standards. It features comprehensive functions such as audit trails, alarm logs, and three-level user permission management.

5.Powerful Remote Management: Equipped with reserved Ethernet and USB interfaces, the device allows for remote access and management from anywhere. This enables remote monitoring, data analysis, and troubleshooting, significantly enhancing work efficiency.

Ordering Information

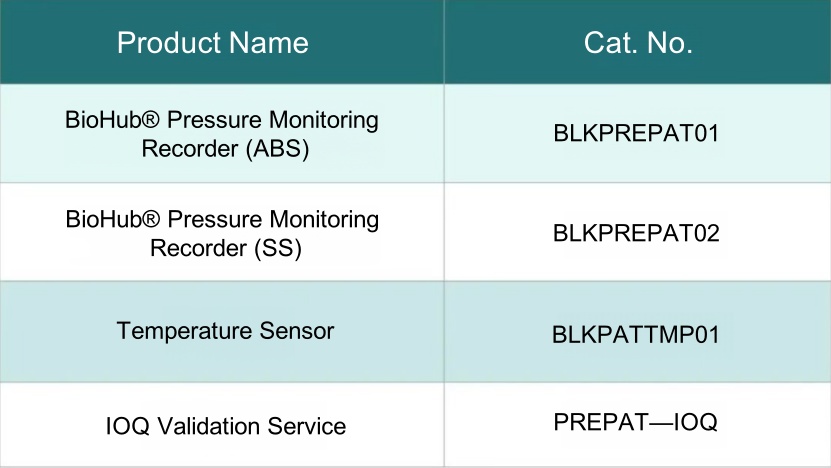

Table 1. Ordering Information for BioHub® Pressure Monitoring Recorder and Accessories

Additionally, BioHub® Pressure

Monitoring Recorder can be paired with

BioLink's

single-use pressure sensors

to better meet the biopharmaceutical

industry's increasing demands

for accuracy and safety in pressure monitoring.

BioHub® Single-use Pressure Sensor

BioHub® Single-use Pressure Sensor is suitable for processes such as cell culture, chromatography, depth ﬁltration, nanoﬁltration, and ultraﬁltration dialysis. It provides precise monitoring solutions for sterile processes, ensuring smooth production operations and simplifying your process control.

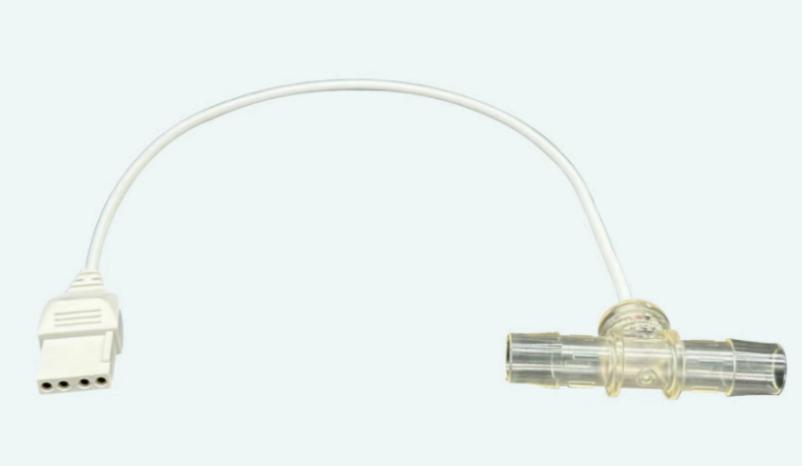

Figure 2. BioHub® Single-use Pressure Sensor

Product Features

Specification: 1/4''HB, 3/8''HB, 1/2''HB
Material: Polysulfone（PSU）
Sterilization Method: Gamma irradiation & Autoclave
Operating Range:-11.5~75 psi (-0.79~5.2 bar)
Accuracy Requirements: 0~45 psi (0~3.1 bar)
Fluid contact parts comply with USP Class VI standards
Manufactured in ISO Class 7 Cleanroom
100% integrity testing

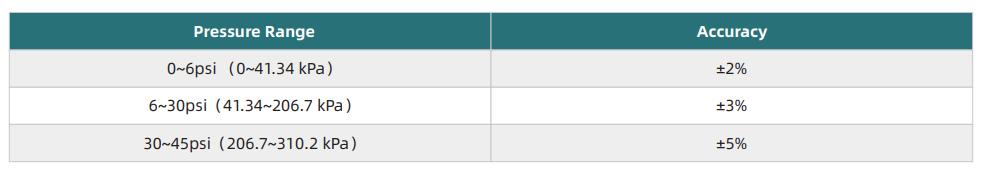

Table 3. Pressure Detection Range and Accuracy of the BioHub® Single-use Pressure Sensor

Ordering Information

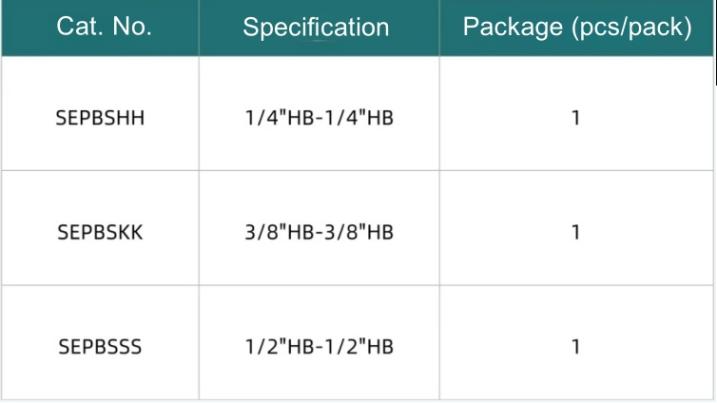

Table 4. Ordering Information for BioHub® Single-use Pressure Sensor

References
