NovaLinX® single-use consumables mainly include storage bottles, satellite bags, and manifold bags. RNase/DNase testing is optional to prevent the potential introduction of RNase/DNase during drug production.
Features of NovaLinX® Nuclease-free Single-Use Bioprocess Bags

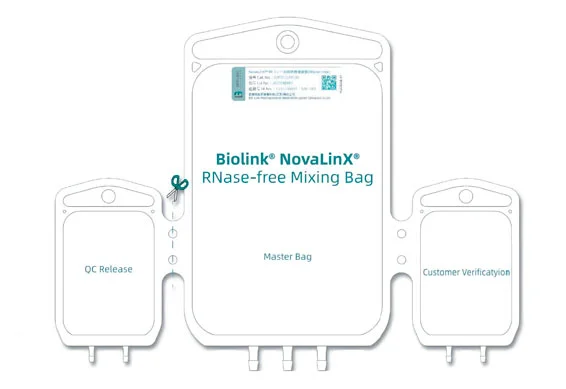

Features of Satellite Bag
• Master bag + innovative design of double satellite bags (enabling 100% individual inspection of RNase/DNase-free bags)
• Identical material/production environment of the master bag and satellite bags, consistent gamma irradiation after packaging
• Irradiated satellite bag-1 (QC release): for Nuclease inspection prior to product release
• Irradiated satellite bag-2 (customer verification): for customer verification and review
• The extraction ratio of the satellite bag is at the worst case, which represents the Nuclease level of the master bag.
• Imported 9101 film.
• The production environment is usually an ISO Class 7 clean workshop for single-use bioprocessing consumables.
• Environmental monitoring bag (monthly monitoring of production environment Nuclease level.) - produced on the last day of the month on the production line (Worse Case)

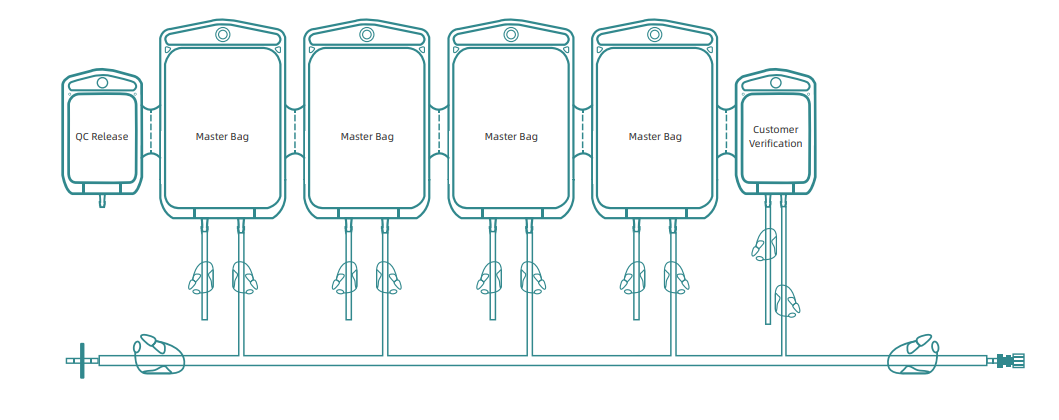

Features of Manifold Bag
• Master bag + innovative design of double satellite bags
• Pre-connection of tubing, with one end of the main tubing interface for liquid inlet and the other end with an air filter disc for exhaust and tubing emptying, simplifying operation and reducing contamination risks.
• Identical material/production environment of the master bag and satellite bags, consistent gamma irradiation after packaging
• Irradiated satellite bag-1 (QC release): for Nuclease inspection prior to product release
• Irradiated satellite bag-2 (customer verification): for customer verification and review
• The extraction ratio of satellite bag is at the worst case, which represents the Nuclease level of the master bag.
• Imported 9101 film and tubing fittings.
• Tubing connecting the bags can be disconnected by a sealer.
• The production environment is usually an ISO Class 7 clean workshop for single-use bioprocessing consumables.
• Environmental monitoring bag (monthly monitoring of production environment Nuclease level.) - produced on the last day of the month on the production line (Worse Case)
Why Choose Nuclease-Free Single-Use Consumables?
Deoxyribonuclease (DNase) and ribonuclease (RNase) are a class of hydrolase that can degrade DNA and RNA molecules by severing the phosphodiester bonds of polynucleotide chains. Nucleases are widely found in the environment, on the surface of materials and consumables. In the production process of biologics, there is also a large potential for residues and contamination of nucleases, including endogenous RNase contamination of biological samples, exogenous contamination of water, buffers, surface of consumables, as well as environmental microorganisms and human beings. Nucleases are often extremely reactive, and small amounts of DNase/RNase contamination can lead to significant DNA/RNA degradation, which can have a significant impact on experimental and manufacturing processes.
With the boom of the biopharmaceutical industry in recent years, more and more bioproducts are being used in disease prevention and treatment. Technologies such as mRNA, cellular and gene therapies, and vaccines based on viral vector modification are gradually gaining widespread use. While anticipating the remarkable effects of these new technologies, the market has also put forward higher requirements for the quality and safety of bioproducts. In order to ensure the safety of bioproducts and the control of impurity residues, numerous relevant regulations and policies have been launched. The“2020 edition of the Pharmacopoeia of the People's Republic of China” specifically mentions the need to control process-related impurities, including nuclease, in the R&D and production of these biologics in sections“General Instructions on Vaccine for Human Use”, “General Instructions on Recombinant Monoclonal Antibody Products for Human Use”, “General Instructions on Gene Therapy Products for Human Use”, and “Technical Guidelines for the Research and Evaluation of Cellular Therapeutic Products”.
Specifications of NovaLinX® Nuclease-free Single-Use Bioprocess Bags
Final A Film Product No.
Volume
Bag Design
Line 1
Line 2
Line 3
ARF01LCPPL00
1 L
Hanging hole
50 cm ID1/4"*0D7/16" C-Flex TPE tube + plug
50 cm ID1/4"*OD7/16" C-Flex TPE tube + plug
30 cm ID1/4"*OD7/16" C-Flex TPE tube + Needleless sampling valve
ARF02LCPPL00
2 L
Hanging hole
ARF05LCPPL00
5 L
Hanging rod + Hanging hole
50 cm ID3/8"*OD5/8" C-Flex TPE tube + plug
50 cm ID3/8" * OD5/8" C-Flex TPE tube + plug
ARF10LCPPL00
10L
Hanging rod + Hanging hole
ARF20LCPPL00
20 L
Hanging rod + Hanging hole
ARF50LCPPL00
50 L
Hanging rod + Hanging hole
ARF01LHAAL00
1 L
Hanging hole
50 cm IDl/4"*OD7/16" Platinum 50 Platinum cured silicone tube + AseptiQuik® G Sterile Connector
50 cm ID1/4"*OD7/16" Platinum 50 Platinum cured silicone tube + AseptiQuik® G Sterile Connector
30 cm lD1/4"*OD7/16" C-FLex TPE tube + Needleless sampling valve
ARF02LHAAL00
2 L
Hanging hole
ARF05LHAAL00
5 L
Hanging rod + Hanging hole
50 cm ID3/8"* OD5/8" Platinum 50 Platinum cured silicone tube + AseptiQuik® G Sterile Connector
50 cm lD3/8"*OD5/8" Platinum 50 Platinum cured silicone tube + AseptiQuik® G Sterile Connector
