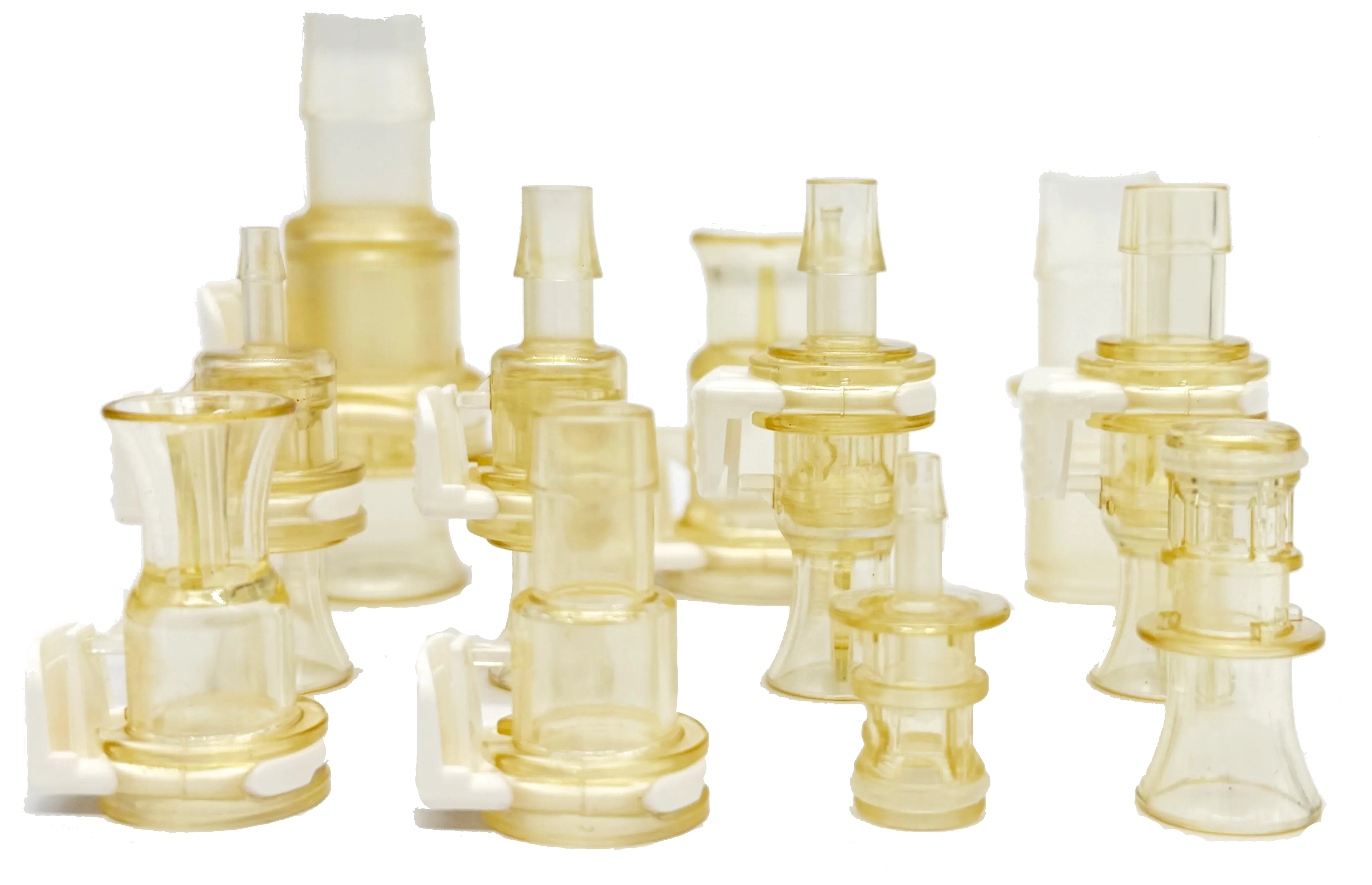

SynaLinX FE 快接头

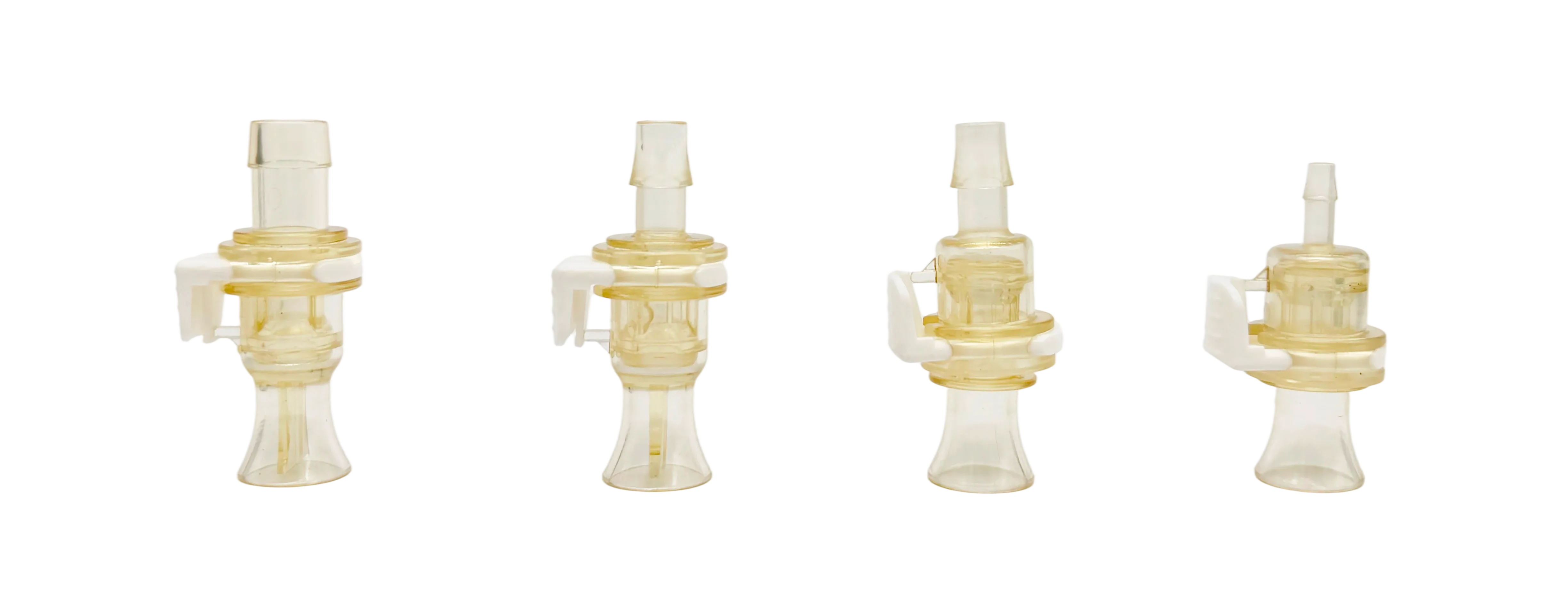

SynaLinX® FE Quick Couplings

The SynaLinX® FE Quick Couplings from BioLink offer a convenient and secure solution for fluid transfer across various applications. Available in multiple specifications, both ends can rotate after connection to reduce the risk of disconnection from pipeline twisting.


Inquiry
Download
Applications Features Advantages Validation Contact us

Quality Assurance of SynaLinX ® FE Quick Couplings

  • Manufactured following ISO 9001 and ISO 13485 standards

  • Compliant with BSE/TSE requirements

  • Compliant with USP<87> Biological Reactivity Tests, In Vitro

  • Compliant with USP<88> Class VI — Biological Reactivity Tests, In Vivo

  • Bacterial endotoxins compliant with USP<85> Requirements

  • Subvisible particles compliant with Chinese Pharmacopoeia (2020 Edition, Volume IV) Requirements for Large-Volume Injections (same as USP<788>)

  • Meets USP<661> physicochemical properties

  • Can be sterilized by Gamma-irradiation or Autoclave

  • Compliant with BPOG and USP<665> Extractables Test

Product Features of SynaLinX ® FE Quick Couplings

  • Easy to connect

  • The hose can be rotated after coupling

  • Available in various sizes to reduce the need for diameter transitions

  • Compatible with standard quick couplings on the market

Technical Parameters of SynaLinX ® FE Quick Couplings

Material

Main body: Polycarbonate （PC）

O-ring: Platinum-cured silicone

Thumb latch: Polyvinylidene fluoride （PVDF）


Main body: Polysulfone （PSU）

O-ring: Platinum-cured silicone

Thumb latch: Polyvinylidene fluoride （PVDF）

Operating Pressure≤ 4.1bar（60psi）
Temperature Range-80-121℃-80-132℃
Sterilization

Gamma-irradiation: 25-45 kGy

Autoclave: up to 10 cycles at 121℃ for 30 minutes

（unconnected state）

Gamma-irradiation: 25-45 kGy

Autoclave: up to 25 cycles at 132℃ for 60 minutes

（unconnected state）


Ordering Information of SynaLinX ® FE Quick Couplings

FEC Quick Couplings


Cat. No.Product NameMaterialsSize (mm)Pack Size
ABC
FECCME#F

SynaLinX® FEC Coupling Insert（1/8"HB）

PC

4.8

29.6

15.2

50 pcs/pack

FECCMH#F

SynaLinX® FEC Coupling Insert（1/4"HB）

PC

9

33.6

15.2

50 pcs/pack


FECCMK#F

SynaLinX® FEC Coupling Insert（3/8"HB）

PC

11.1

33.1

15.2

50 pcs/pack

FECCFE#F

SynaLinX® FEC Coupling Body（1/8"HB）

PC

4.8

30.1

24.7

50 pcs/pack

FECCFH#F

SynaLinX® FEC Coupling Body（1/4"HB）

PC

9

34.1

24.7

50 pcs/pack

FECCFK#F

SynaLinX® FEC Coupling Body（3/8"HB）

PC

11.1

33.3

24.4

50 pcs/pack

FECCMP#F

SynaLinX® FEC Sealing Plug

PC

15.2

31.7

NA

50 pcs/pack

FECCFP#F

SynaLinX®️ FEC Sealing Cap

PC

24.7

33

NA

50 pcs/pack

FECSME#F

SynaLinX® FEC Coupling Insert（1/8"HB）

PSU

4.8

29.6

15.2

50 pcs/pack

FECSMH#F

SynaLinX® FEC Coupling Insert（1/4"HB）

PSU

9

33.6

15.2

50 pcs/pack

FECSMK#F

SynaLinX® FEC Coupling Insert（3/8"HB）

PSU

11.1

33.1

15.2

50 pcs/pack

FECSFE#F

SynaLinX® FEC Coupling Body（1/8"HB）

PSU

4.8

30.1

24.7

50 pcs/pack

FECSFH#F

SynaLinX® FEC Coupling Body（1/4"HB）

PSU

9

34.1

24.7

50 pcs/pack

FECSFK#F

SynaLinX® FEC Coupling Body（3/8"HB）

PSU

11.1

33.3

24.4

50 pcs/pack

FECSMP#F

SynaLinX® FEC Sealing Plug

PSU

15.2

31.7

NA

50 pcs/pack

FECSFP#F

SynaLinX®️ FEC Sealing Cap

PSU

24.733

NA

50 pcs/pack


FEX Quick Couplings


Cat. No.Product NameMaterialsSize (mm)Pack Size
ABC

FEXCMS#F

SynaLinX® FEX Coupling Insert（1/2"HB）

PC

15.6

49

21.6

50 pcs/pack

FEXCFS#F

SynaLinX® FEX Coupling Body（1/2"HB）

PC

32.7

50.2

15.6

50 pcs/pack

FEXCMP#F

SynaLinX® FEX Sealing Plug

PC

27.9

42.4

NA

50 pcs/pack

FEXCFP#F

SynaLinX®️ FEX Sealing Cap

PC

32.7

42.5

NA

50 pcs/pack

FEXSMS#F

SynaLinX® FEX Coupling Insert（1/2"HB）

PSU

15.6

49

21.6

50 pcs/pack

FEXSFS#F

SynaLinX® FEX Coupling Body（1/2"HB）

PSU

32.7

50.2

15.6

50 pcs/pack

FEXSMP#F

SynaLinX® FEX Sealing Plug

PSU

27.9

42.4

NA

50 pcs/pack

FEXSFP#F

SynaLinX®️ FEX Sealing Cap

PSU

32.7

42.5

NA

50 pcs/pack
