Purification Tip | First Step in Packing a Column: Start with Choosing the Right Packing Solution

The column efficiency of a chromatography column significantly impacts the separation performance in high-resolution purification steps such as ion exchange, hydrophobic interaction, and size exclusion chromatography. Column efficiency is typically evaluated by two parameters: theoretical plate number and symmetry. Symmetry reflects whether the column is packed too loosely or too tightly, while theoretical plate number is mainly influenced by the uniformity of the packing. In practice, for columns with a high theoretical plate number but poor symmetry, adjustments to the compression ratio and column adapter height can improve performance. However, for columns with a low theoretical plate number, such adjustments are unlikely to yield significant improvement.

Achieving a high theoretical plate number depends primarily on the uniform and orderly arrangement of resin particles within the column. When liquid flows through a uniformly packed bed, the flow distribution is even, axial mass transfer is consistent, and peaks are narrow and well-focused. During column packing, good dispersion of the resin and stable sedimentation are prerequisites for uniform particle arrangement.

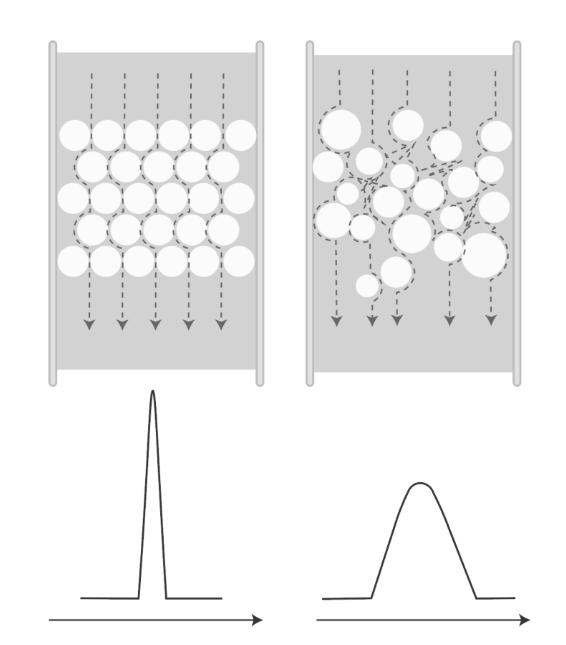

Figure 1: Schematic diagram of flow and column efficiency for uniformly vs. non‑uniformly packed chromatography columns

Important Role of the Packing Solution

An appropriate packing solution maintains the stability of the chromatography resin while effectively inhibiting interactions between resin particles, including aggregation due to hydrophobic interactions and repulsion due to electrostatic interactions. It also reduces adsorption of the resin to hardware such as the column tube. Additionally, the solution should allow a suitable sedimentation velocity for the resin, preventing overly rapid settling that would lead to a non‑uniform bed.

Typical Packing Solution Selection for Different Resin Types

In biopharmaceutical manufacturing, agarose‑based resins are predominant. Such resins are highly hydrophilic and have a density close to that of water; in most cases, water can be used as the packing solution. Polymer‑matrix resins are intrinsically more hydrophobic, but after good hydrophilic modification, water can also be used for packing. However, the column efficiency achieved with water is often significantly lower than that achieved with a salt solution. It is generally recommended to use NaCl at a concentration of 0.1 M or higher for packing polymer‑based resins. Hydroxyapatite, due to its inherent stability issues, is not suitable for packing with pure water; a buffer of 20 mM PB + 0.15 M NaCl, pH 7.4 is recommended. For special‑matrix chromatography resins, refer to the supplier’s recommendations for the appropriate packing solution.

When packing laboratory‑scale columns, the resin tends to adsorb to the inner wall of the glass column due to surface tension of water, which impairs dispersion and sedimentation. This can be mitigated by adding a certain proportion of ethanol (e.g., 20%).

Figure 2: State of the outflow liquid when packing hydroxyapatite with water

Optimization of Packing Solution under Special Conditions

When equipment or other constraints prevent achieving a high plate number with the default packing solution, an appropriate packing solution can be selected based on inhibiting interactions between resin particles. For ion exchange resins, using a salt solution effectively shields electrostatic interactions. For hydrophobic interaction chromatography, adding a certain proportion of organic solvent (typically ethanol or methanol) helps avoid resin aggregation. For some polymer‑matrix ion exchange resins, a packing solution containing both a salt and an organic solvent can be used to suppress both hydrophobic and electrostatic interactions simultaneously; such solutions are also applicable for packing multimodal chromatography resins.

Matrix	Chromatography Type	Preferred Packing Solution	Optional Packing Solution
Agarose	Ion Exchange	Water	Salt solution
	Hydrophobic interaction	Water	Organic solvent
	Multimodal	Water	Salt solution/Salt solution with organic solvent
	Affinity	Water	Salt solution
	Size exclusion	Water	Salt solution
Non-natural polymer resin	Except reversed phase	Salt solution*	Salt solution with organic solvent
Non-natural polymer resin	Reversed phase	Organic solvent	/
Hydroxyapatite	NA	PBS	/
Special matrix resin	NA	Refer to Instructions for Use	/
*For polymer hydrophobic resin, avoid using high concentration salt solutions.

Table 1: Packing solutions for common chromatography resins

Packing Requirements for Reused Resin

Used chromatography resin may exhibit compromised packing performance due to incomplete cleaning. Residual contaminants that are not thoroughly removed can cause resin aggregation or even caking, impairing resin dispersion. When such phenomena are observed, it is recommended to clean the resin effectively before packing. The types of contaminants are generally related to the mode of the resin. After cleaning, the solutions described above can be used to ensure good packing efficiency.

Summary

In summary, selecting the appropriate packing solution and the correct slurry concentration are prerequisites for ensuring thorough dispersion of resin particles and achieving high column packing efficiency. When working with an unfamiliar resin, always refer to the supplier’s instructions to ensure proper packing.
