Analysis of Key Points in Resin Lifetime Testing: From Validation Logic to Practical Implementation

In biopharmaceutical production, chromatography resin is a core consumable for separation and purification. Its lifetime directly affects production cost, process stability, and product quality. In a single application, the cost of resin can be as high as one hundred thousand yuan. Therefore, extending its useful life through scientific validation is critically important. This article systematically summarizes the key points of resin lifetime testing based on industry practices and regulatory requirements, providing biopharmaceutical companies with practical validation strategies.

What is Resin Lifetime Validation?

01 Definition

Resin lifetime validation refers to the process of evaluating, through specific methods and procedures, the service life of a resin from its first use under actual operating conditions until its performance declines to a predefined threshold or until obvious damage occurs.The core objective is to ensure the stability and reliability of the resin in applications such as chemical, pharmaceutical, and petroleum industries, thereby avoiding production risks and economic losses due to material failure. The validation process must integrate process indicators (such as purity, yield, impurity content, loading capacity, etc.) and number of cycles to clearly define the safe operating limits of the resin.

02 Core Objectives

• Ensure production continuity and compliance (meeting GMP, FDA/EMA requirements)

• Control Costs: Extending lifetime significantly reduces expenditure

• Ensure Process Stability: Avoid product quality fluctuations caused by resin failure

Key Factors Influencing Lifetime

01 Material Properties: Impurities and Viscosity are "Hidden Killers"

• Impurity deposition: Impurities such as HCP, nucleic acids, and lipids can easily block resin pores, leading to loading capacity decline (in the capture/polishing stage, resin lifetime decay is significantly faster in the capture step due to high impurity concentrations).

• Viscosity and particulates: High viscosity of unclarified feed reduces capture efficiency; particulates such as cell debris may directly damage the bead structure.

02 Chromatography Resin Itself: Chemical Resistance Determines Lifetime Upper Limit

Alkali resistance: For example, Protein A resins must tolerate 0.5–1.0 M NaOH cleaning. The MaXtar® InnovA pro resin maintains over 80% of its original capacity after 200 cycles.

• Mechanical strength: Highly cross-linked media (e.g., agarose-based) better withstand flow-induced pressure, reducing the risk of column bed collapse.

03 Operation and Maintenance: Details Determine Lifetime

• lCleaning and regeneration:

1. Strong alkali (NaOH) efficiently removes proteins, but improper concentration may damage ligands; weak acid (acetic acid) is suitable for removing precipitates; avoid high-pressure flushing.

2. Resin storage requires 20% ethanol.

• System control: Dead volume can cause sample diffusion; pressure fluctuations (e.g., pump pulsation) may disrupt bed homogeneity.

• Packing quality: When repacking, ensure column packing symmetry and acceptable column efficiency to maintain consistent elution peak shape and volume.

Core Standards and Indicators for Lifetime Validation

01 Performance Thresholds Setting

• Dynamic binding capacity (DBC): ≤20% decrease

• Column efficiency (HETP): ≤10% change

• Pressure: ≤30% increase

• Product quality: Purity, HCP, aggregates, etc. must meet release specifications

02 Principles for Determining Number of Cycles

• Risk assessment: Critical steps (e.g., those affecting product purity) require rigorous validation; lower-risk steps may use fewer cycles.

• Cover worst-case conditions: Validation cycles ≥ 1.5–3 times the planned number of cycles (e.g., plan for 50 cycles, validate 75–150 cycles).

• Industry reference: For monoclonal antibody production, validation typically covers 50–150 cycles.

Validation Plan Design: From Laboratory to Commercial Scale

01 Laboratory Scale (Preliminary Assessment)

• Objective: Determine key parameters and assess decay trends.

• Number of cycles: 1.5–2 times the planned number of cycles.

02 Pilot/Commercial Scale (Confirm Stability)

• Objective: Simulate actual production conditions and confirm maximum usable cycles.

• Number of cycles: At least cover the planned number of cycles, or validate until performance failure.

03 Data Analysis Methods

• Trend analysis: Plot dynamic binding capacity, pressure, and other parameters against cycle number.

• Statistical control: Use ±3σ control limits to determine performance stability.

Cleaning Validation: A "Required Course" for Extending Lifetime

During resin cleaning validation, a blank control is included to verify the thoroughness of cleaning. The equilibration buffer is used as a substitute for the sample during loading, and the corresponding buffer is collected. By testing the collected buffer for impurity residues, concentration, and other parameters, it is determined whether the cleaning process meets standards. Blank controls can detect cleaning validation and prevent continuous accumulation of impurities.

Summary: Scientific Validation Reduces Cost and Increases Efficiency

Resin lifetime validation is a core part of biopharmaceutical process validation. It must integrate multiple factors such as material properties, medium type, and operation/maintenance. Through stepwise validation from bench to commercial scale, reasonable performance thresholds and cycle numbers are established. At the same time, standardized cleaning and regeneration procedures are key to extending lifetime. Through systematic validation, companies can significantly reduce production costs while ensuring product quality, thereby enhancing process competitiveness.

About Suzhou Application Center

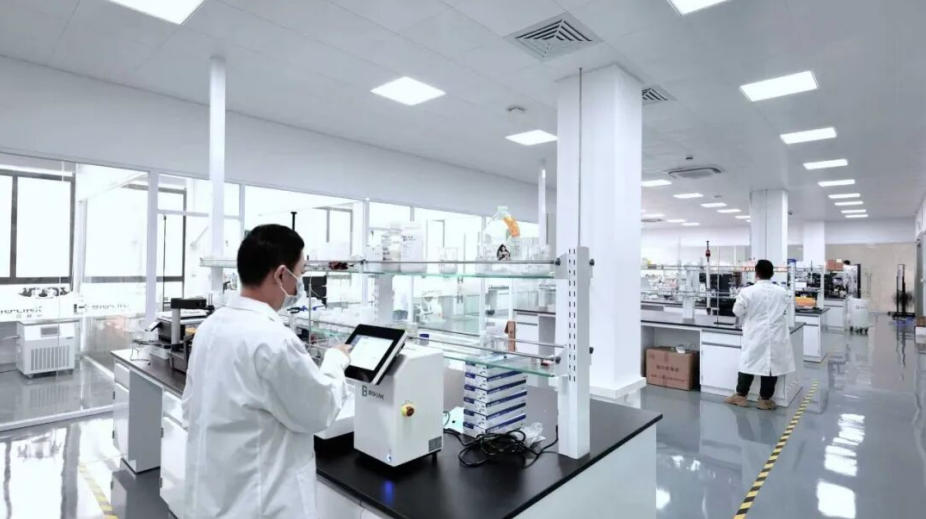

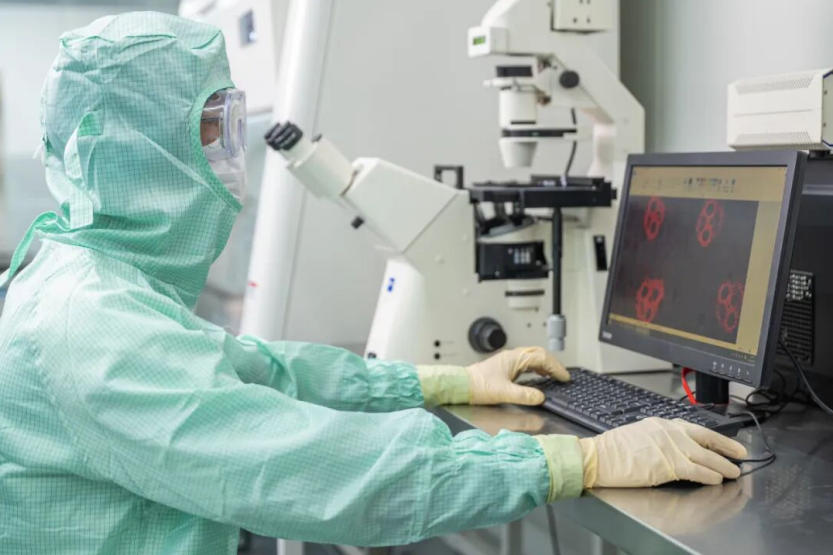

• Professional Platform: Complete functional facilities including a cell room, microbiology laboratory, purification laboratory, analytical laboratory, and pilot plant.

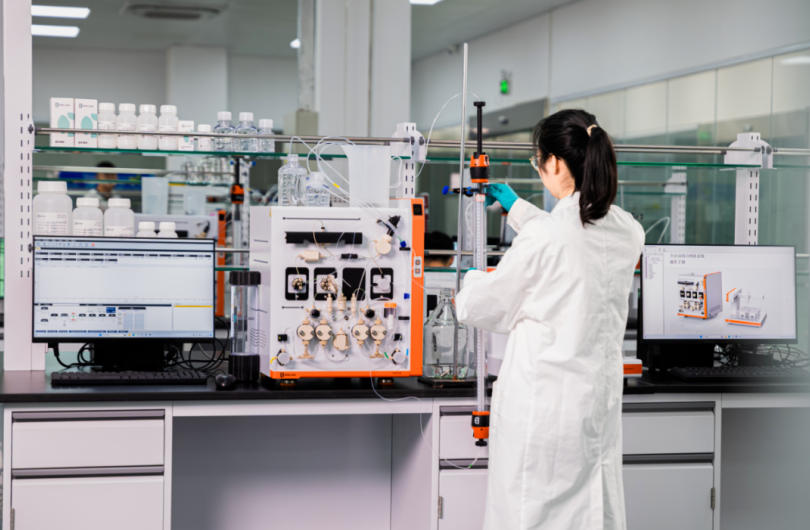

• State-of-the-Art Equipment: Equipped with chromatography systems, key analytical instruments, and other auxiliary equipment, including BioLink's own brand and imported high-end chromatography systems, ensuring scalability and reliability.

• Experienced Team: An elite team with an average experience of over five years, possessing rich practical backgrounds from top pharmaceutical companies and multinational suppliers, deeply understanding both process and industry needs.

• Comprehensive Services: Full support including process development, sample preparation, validation services, analytical testing, and column packing services.

Main Services of Suzhou Application Center

Upstream Process

• Bacterial/cell culture process development

• Culture process qualification and transfer

• Laboratory and pilot scale fermentation sample preparation

Downstream Process

• Purification process development

• Purification process qualification and transfer

• Laboratory and pilot scale purification sample preparation

Validation and Training

• Process characterization, resin lifetime validation

• Process training courses

• Hands-on training

Instrument Overview at Suzhou Application Center

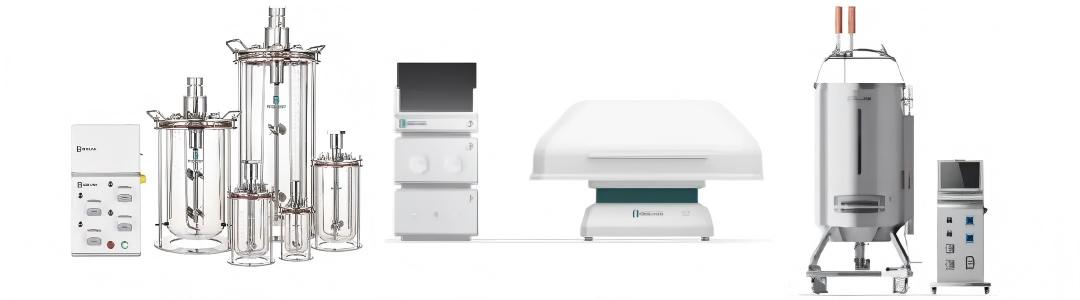

Cell Culture

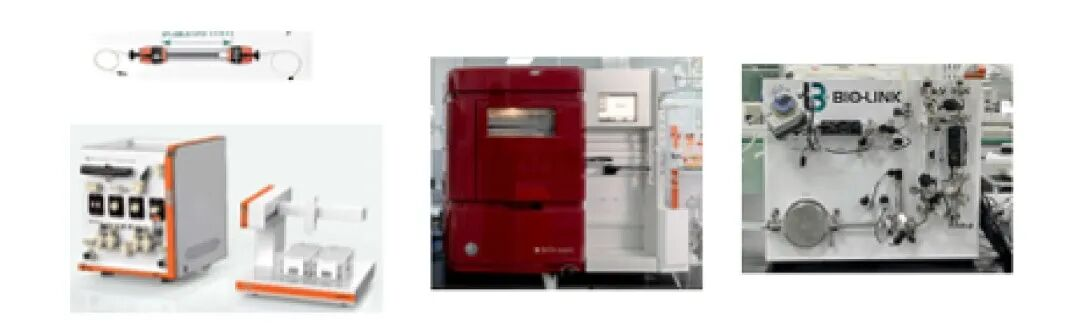

Separation and Purification

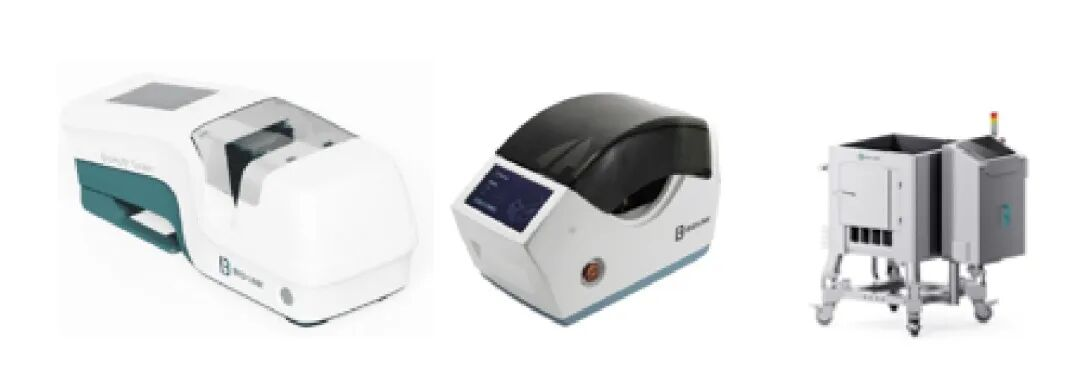

Fluid Management

Analytical Testing
