VentiLink^® Series ESG Hydrophobic Filters

Name: VentiLink ® Series ESG Hydrophobic Filters
Brand: Bio-Link
Price: 100 USD

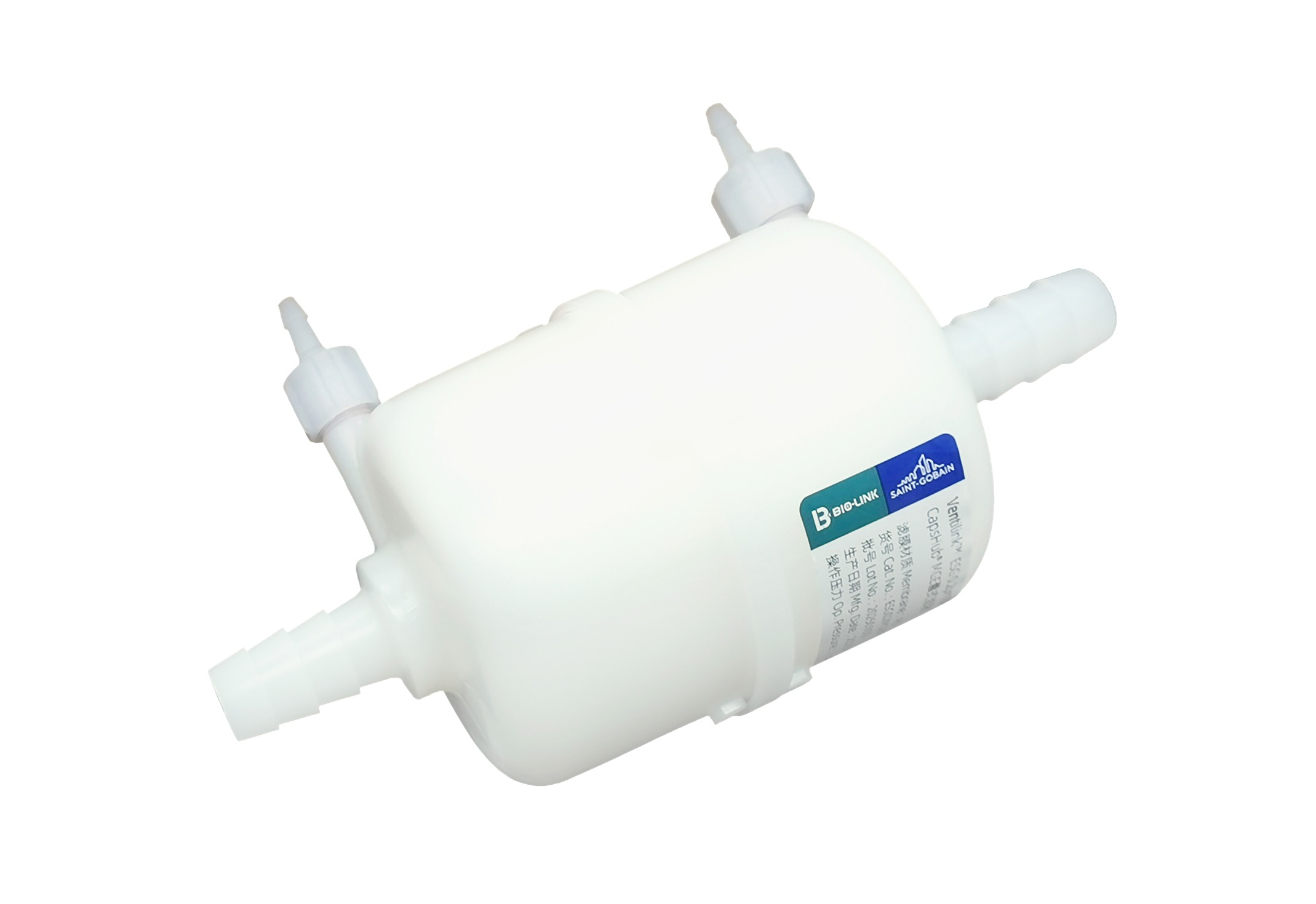

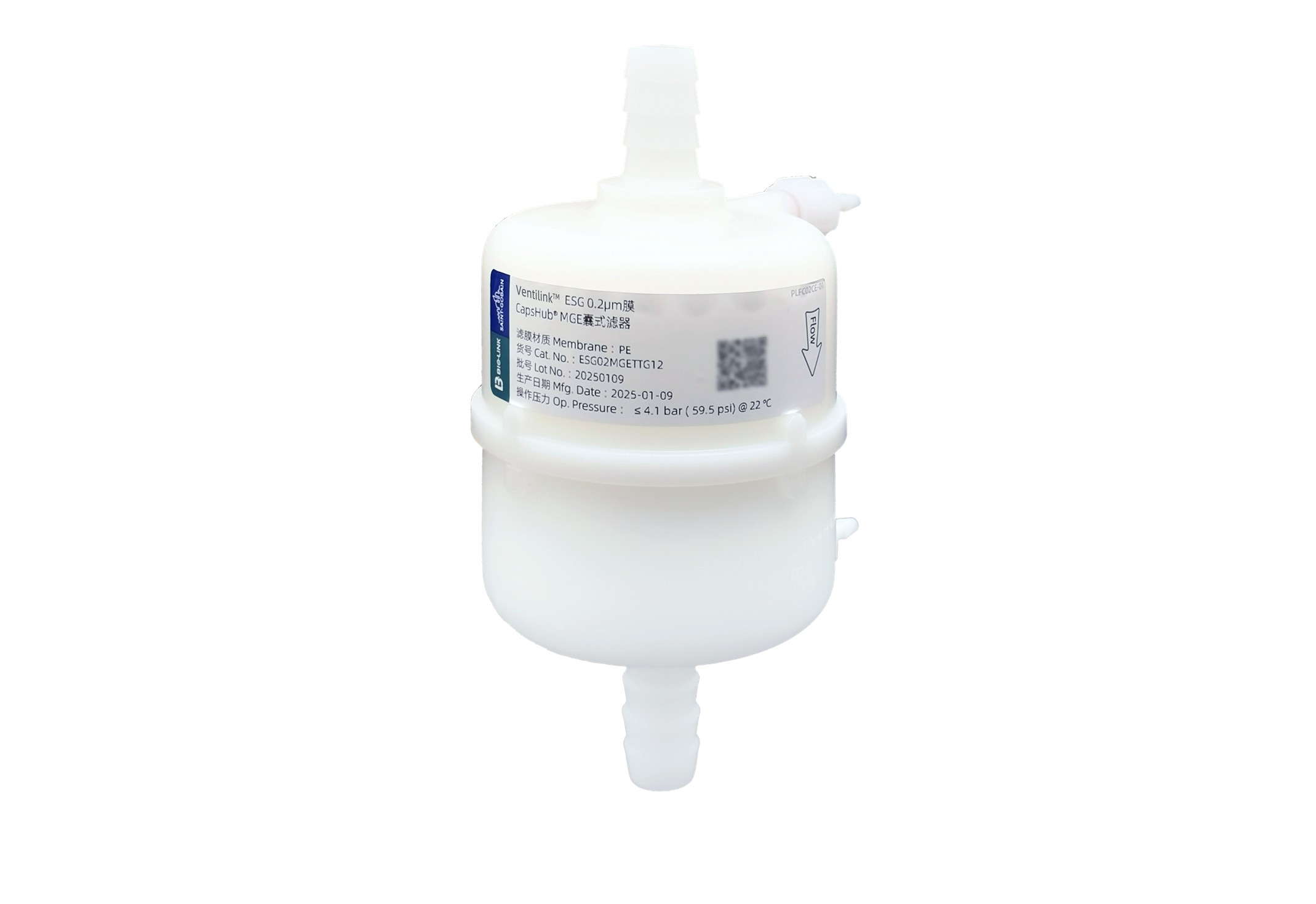

The VentiLink® Series ESG Hydrophobic Filters from BioLink are gammairradiatable filtration units which can be integrated into single-use sterile assemblies.

Inquiry

Download

Common applications Common applications Why Choose Contact us

Features of The VentiLink^® Series ESG Hydrophobic Filters

The VentiLink® Series ESG Filters with 0.2 μm sterilizing-grade hydrophobic polyethylene (PE) membranes can be widely used in gas filtration applications, offering excellent throughput with low differential pressure and high flow rate.

The VentiLink® series offers disc capsules for R&D stage, large capsules for commercial production, supporting applications from drug development, pilot scale to commercial manufacturing.

Product Series	Filtration Grade	Membrance Code	Membrance Pore Size (μm)	Min. Bubble Point (@22°C)
VentiLink® Series ESG Hydrophobic Filters	Sterilizing grade	ESG02	0.2	1.2 bar (in 60% isopropanol, 40% purified water)

Key applications of VentiLink^® Series ESG Hydrophobic Filters

Single-use bioprocessing bag gas intake/vent
Bottles or Carboy aspirators
Compressed gas filtration

Why Choose VentiLink^® Series ESG Hydrophobic Filters

Excellent Performance

Validated high-quality hydrophobic polyethylene (PE) membrane
High throughput, low differential pressure, long shelf life
Easy wetting for rapid integrity testing
Full range of specifications for easy scale-up

Regulatory Compliance

Designed, developed and manufactured under an ISO 13485-certified quality management system
100% integrity test
Each filter is supplied with a quality certificate
Each filter and its packaging come with a conformity certificate, part number, batch number, and identification label for full traceability and easy identification
Comprehensive validation guide documentation available

Category	Test Item	Standard/Test Result
Bacterial retention	Bacterial retention capability	Quantitative retention of 107 CFU/cm2 Brevundimonas diminuta per ASTM methodology. Membrane bubble point test data is correlated to bacterial challenge test results
Physiochemical	TOC	Meets current USP requirements for purified water
	Conductivity	Meets current USP requirements for purified water
	Oxidizable substances	Meets current USP requirements for oxidizable substances
Cleanliness	Particulate matter	The microscopic count of the filtrate meets the current USP requirements for particulate matter in injections
	Bacterial endotoxin	<0.25 EU/mL, meets current USP requirements for bacterial endotoxin
	Nonfiber-releasing	Meets 21 CFR 211.72 and 210.3 (b) (6) nonfiber-releasing requirements
Safety	ADCF	No animal-derived components were added or used
	REACH	Complies with REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) Article 57 and Regulation No. 1907/2006
	Material toxicity	Non-toxic, complies with Restriction of Hazardous Substances (RoHS 3) Directive 2015/863
	Biocompatibility	Passes current USP Class VI-121°C plastic testing; Tested per current USP MEM elution method, with no potential cytotoxicity
	Indirect food additive	Meets FDA 21 CFR 177 requirements for Indirect food additives

oduct Series (Membrane Type)	Filter Type
VentiLink® Series ESG Hydrophobic Filters	CapsHub® G Series Disc Capsules
	CapsHub® SG Series Capsules
	CapsHub® MG Series Capsules
	CapsHub® LG Series Large Capsules

Specification		G13	G25	G40	G50
Size (mm)	Body diameter	16	33	45.5	55
Size (mm)	Body length without fittings	3.7	5.45	8	8
Effective Filtration Area (cm²)		0.8	4.6	10.5	15.9
Structure and Material	Filter membrane	Polyethylene (PE)	Polyethylene (PE)	Polyethylene (PE)	Polyethylene (PE)
	Support	NA	NA	NA	Polyethylene (PE)
	Cage	Polyethylene (PE)	Polyethylene (PE)	Polyethylene (PE)	Polyethylene (PE)
Operating Parameters	Max. working temperature	55℃	55℃	55℃	55℃
	Max. inlet pressure (22°C)	2.1bar	2.1bar	2.1bar	4.1bar
	Max. forward differential pressure (22°C)	2.1bar	2.1bar	2.1bar	2.1bar
Sterilization Conditions	Gamma irradiation: up to 50kGy
